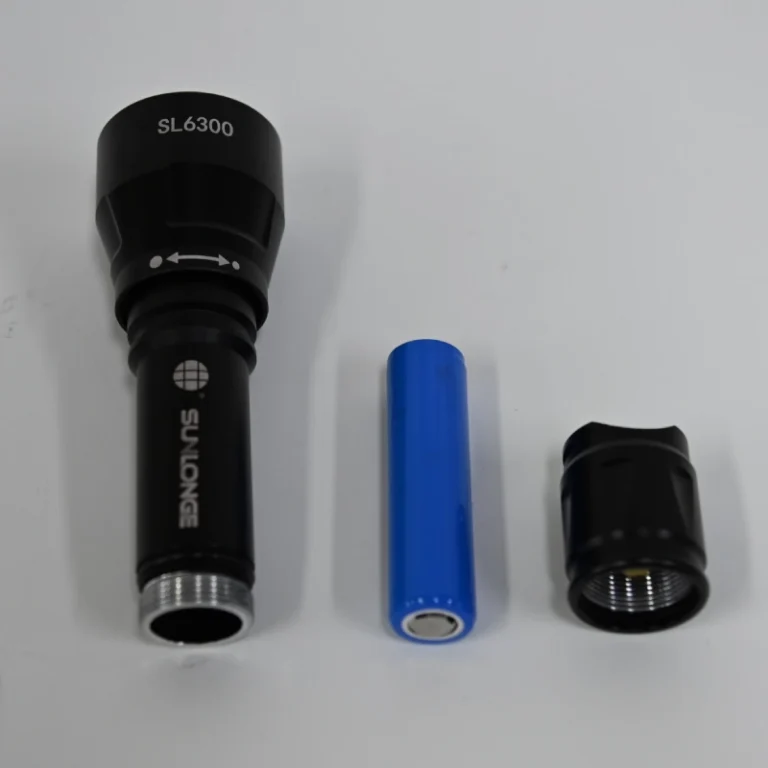

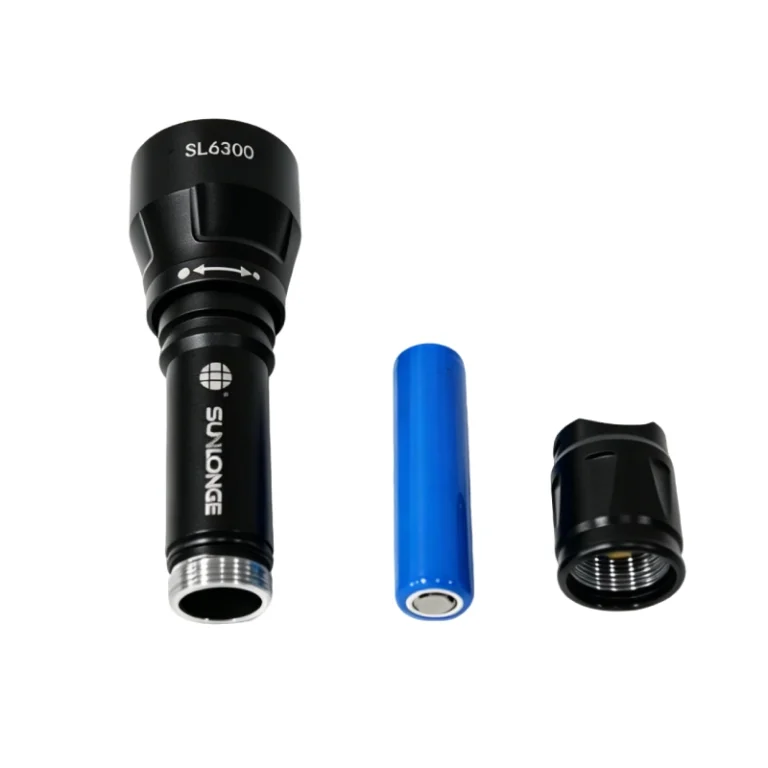

SL6300 Adjustable Light Beam UV LED Flashlight
Peak-Wavelength: 365-370NM
UV Intensity: 4,000-35,000uw/cm2 at 15inch
Number of UV LEDs: 1 x 5W 365NM UV LED with lens, average LED life is 30,000 hours
Power supply: 3.7V 2200 Mah, 18650 lithium battery
Operating Time: 2.5 hours (continuous)
Irradiated Area in 38cm Distance: Ø 30-100mm-See the list.
Stability of UV Intensity: > 85%
Product Size: 150*44mm
WEIGHT :160g without accessories
Share:
What Is SL6300 Adjustable Light Beam UV LED Flashlight？
SL8604 SUPER UV LED LAMP Series Seriesadapts the most advanced LED cold light source technology, they uses Nichia 5 Watt 365nm of NCSU033B(T) and Optical lenses. The LED life is 30,000 hours.
UV-A Intensity is 21,000UW/cm2 in 38cm Distance. Ergonomic design reduces the operator stress, 4x SPOT 365 nm uv led with reflection mirrow universal module design for AC and DC operation simple operation.
Parameter of SL6300 Adjustable Light Beam UV LED Flashlight
| Model | SL6300-Aerospace RRES90061 | SL6300-Standard Version |
|---|---|---|
| Number of UV LEDs | 1 x 5W 365NM UV LED,Optical lens + filter | 1 x 5W 365NM UV LED,Optical lens + filter |
| UV Intensity at 15inch(380mm) | 3500/cm2 | 35000uw/cm2 |
| Visible light emission | < 0.5 FC(5 lux)with white light filters Meets ASTM E3022 and RRES 90061 | < 2 FC(20 lux)with black light filters |
| Irradiated Area in 38cm Distance | 50-100mm(Diameter) | 100mm(Diameter) |
| Power supply | Polymer battery pack DC | The Same |
| Suitable for industry | All Aeronautics NDT | Except Aeronautics NDT |
Video
Package
Standard Package:
- SL6300, Charger, carry case, UV Filter Glasses, 18650 lithium battery
- SL6300 Series: SL6300-S, SL6300-AR (We master the core technology, We can adjust the UV intensity according to customer requirements)
Optional Accessories:
- SL6300-AR meets Rolls-Royce RRES 90061 Requirements,
- ASTM E1417, ASTM E1444, ASTM E709, ASTM E2297, ASTM E3022 compliant.
