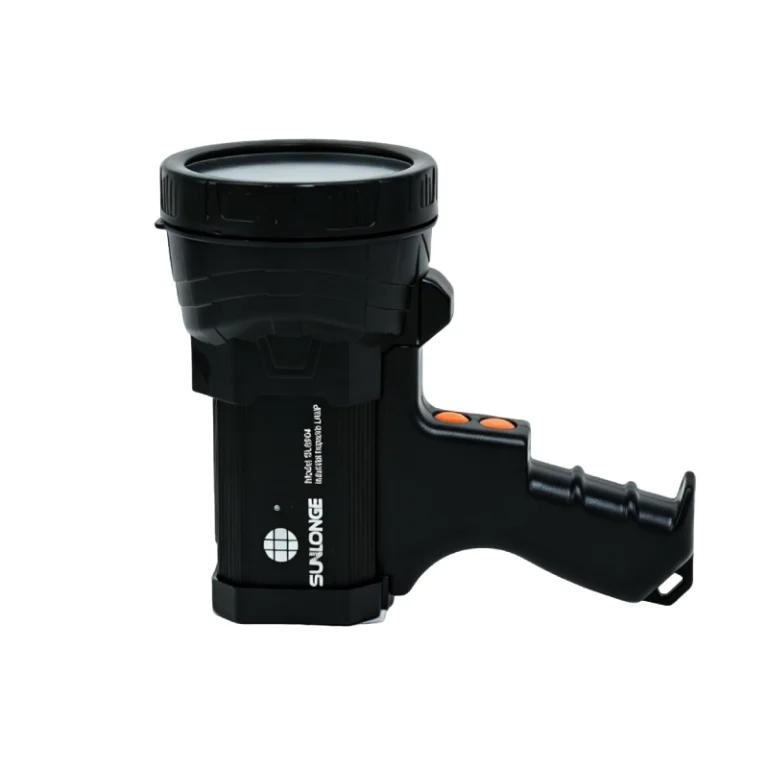

SL8904 The Vulture UV LED Lamp
Number of UV LEDs: 4 x 5W 365NM UV LED
White of LEDs: 6 x White Light LED(The side light)
Power supply: Polymer battery pack DC
Irradiated Area in 38cm Distance: up to 260mm
Lifespan: 30,000 hours
Share:
What Is SL8904 UV LED Lamp？
SL8904 Series is the hand-held NDT inspection lamp with white light and UV light emissions as per to ASTM E 3022 and Rolls-Royce RRES 90061 Requirements;The Vulture SL8904 Series of inspection uv ndt lamp have been specifically designed to meet various industry standards. The beam profile of the UV NDT LAMP is extremely homogeneous without any footprints showing from the LED’s shades, dark spots or other disturbing defects; The Vulture SL8904 Series feature 4 powerful UV-A (365 nm) LEDs plus 6 convenient white light LED.
Parameter of SL8904 UV LED Lamp
| Model | SL8904-Aerospace RRES90061 | SL8904-Standard Version | SL8904-Hight Version |
|---|---|---|---|
| Number of UV LEDs | 4 x 5W 365NM UV LED | ||
| White of LEDS | 6 White Light LED(The side light) | ||
| UV Intensity at 15inch(380mm) | 4000-5000uw/cm2 | 13600uw/cm2 | 22000uw/cm2 |
| Visible light emission | < 0.5 FC(5lux) with white light filters Meets ASTM E3022 and RRES 90061 | < 2 FC(20 lux)with black light filters | < 2 FC(20 lux)with black light filters |
| Irradiated Area in 38cm Distance | 186*260mm | 136*180mm | 126*160mm |
| Power supply | Polymer battery pack DC | The Same | The Same |
| Suitable for industry | All Aeronautics NDT | Except Aeronautics NDT | Except Aeronautics NDT |
Why Choose/Features
A: Special Design
100% solid state circuit ensures working properly in strong magnetic field

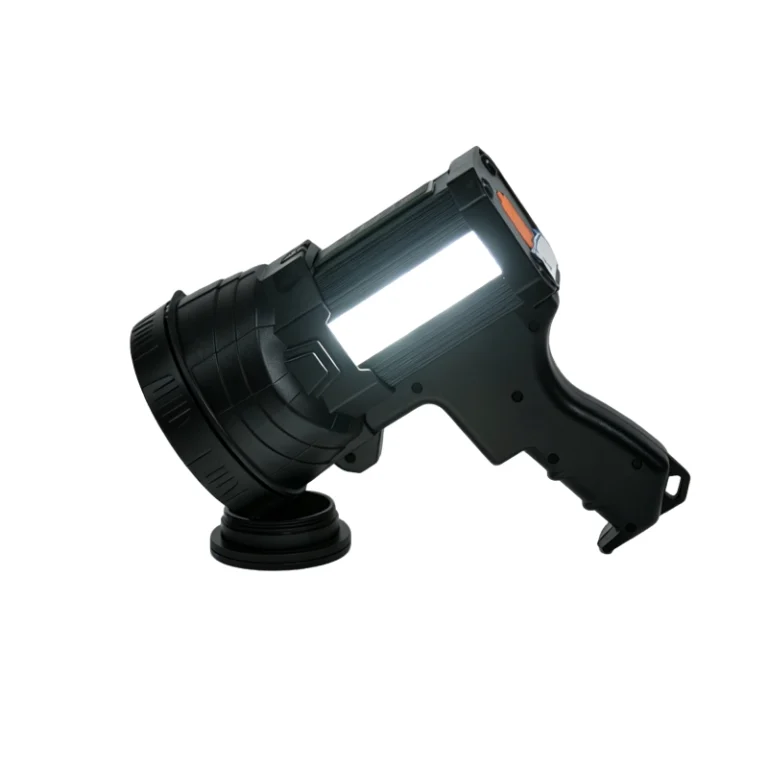

UV light and White light can be used simultaneously, they use 2 separate switches
B: Suitable for NDT
Safe and pure UV-A content with no UV-B and UV-C, almost no visible light.
The SL8904-AR ndt lamp is less than 5000μW/cm2 at 380mm.
Extremely large coverage area of up to 260mm, with a minimum UV-A intensity of 1,000 μW/cm2.
C: Long Lifespan
Unique mechanical cooling system keeps LEDs cool to maintain optimum light output during extended use.
Each LED is with long expected lifespan of 30,000 hours.
The start button provide instant power and the light use 2 separate switches -on the pistol handle for ease of use.
D: Multi-scenario applications
The UV NDT LAMP can use the tripod for easy operation and use in different situations.
Meet Wavelength specifications for FPI and MPI. IP54 approved for water spray and external bodies.
Specifications
- Model: SL8904-H (SL8904-Hight Version), SL8904-S (SL8904-Standard Version), SL8904-AR (SL8904-Aerospace RRES90061)
- Peak-Wavelength: 365-370NM
- UV Intensity: 4,000-21,000uw/cm2 at 15inch(380mm)
- Low visible light emission: less than 2 foot-candles (22 lux)
- Number of UV LEDs: 4 x 5W 365NM UV LED with lens, 6 White Light LED, average LED life is 30,000 hours
- Power supply: 100-240 universal chargers AC/50HZ; Polymer battery pack DC.
- Irradiated Area in 38cm Distance: 260*180mm
- Stability of UV Intensity: > 90%
- Product Size: 180*190*106 mm
- Weight: 680g without accessories
Applications
- Penetration testing
- Biopolymers
- Fluorescence detection
- Criminal Investigation: fingerprints, blood observed
- Fluorescence observation of ore
Package
STANDARD PACKAGE INCLUDING: SL8904, Charger, The Waterproof toolkit;
OPTIONAL ACCESSORIES: Spare UV Filter Glasses, the tripod.
