AT069 UV LED NDT Flashlight

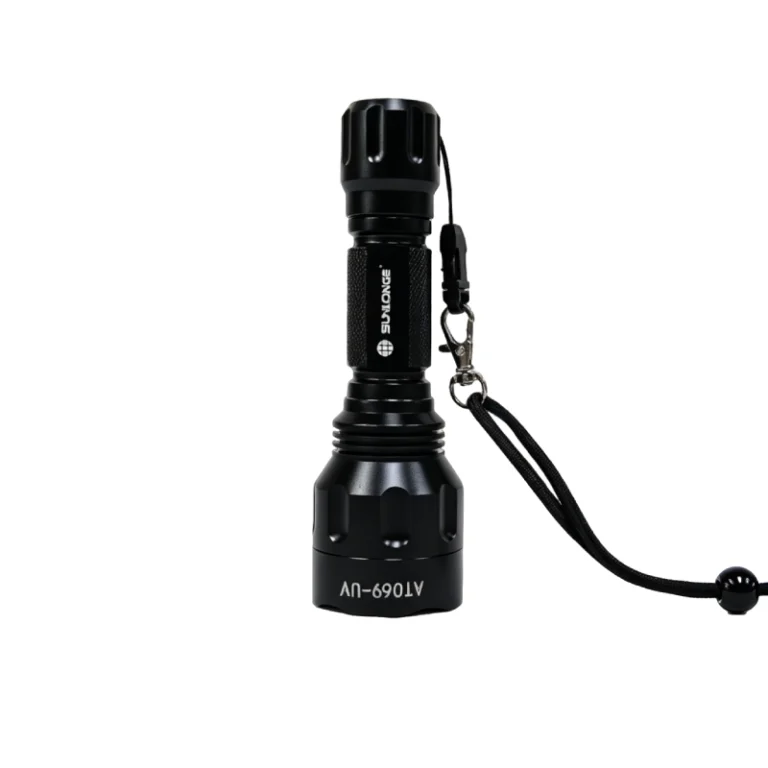

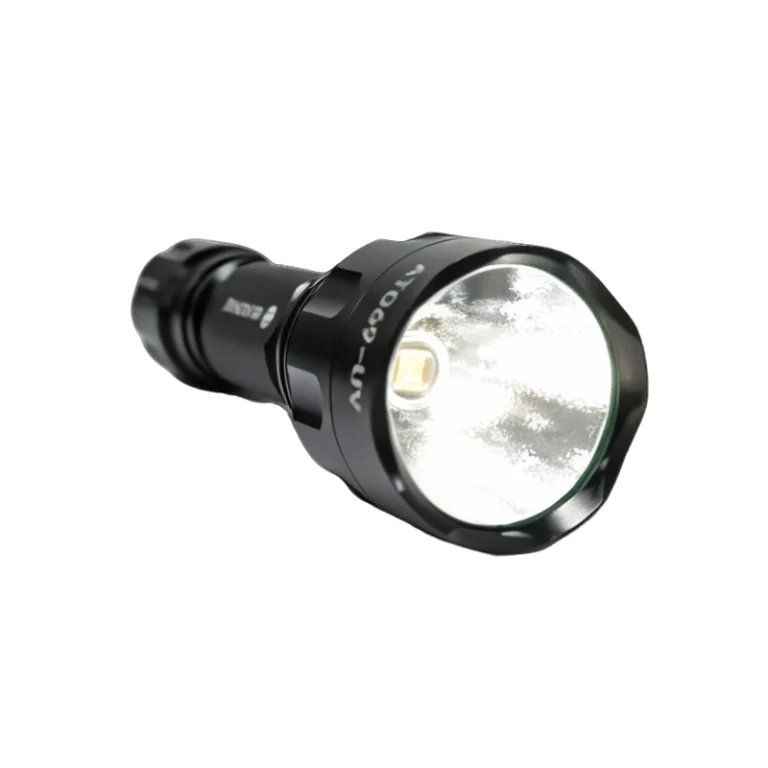

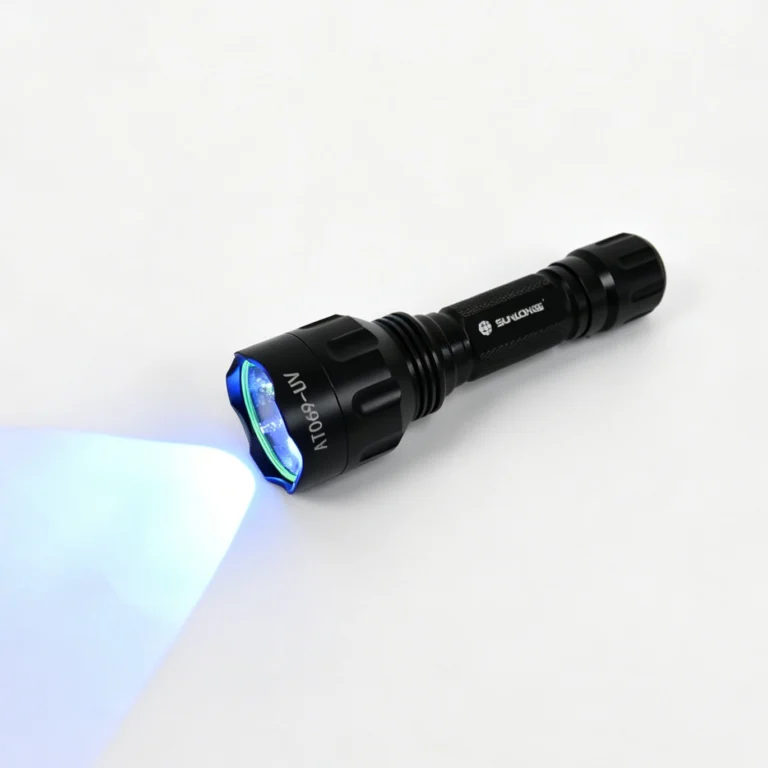

AT069 UV LED NDT Flashlight

Models: AT069-S (Standard), AT069-H (High), AT069-AR (Aerospace, meets Rolls-Royce RRES 90061)

Lamp: 5W 365NM UV LED

Runtime (high): 2.5 hours

Application: such as NDT INSPECTION and UV CURING

What is AT069 Series UV Flashlight？

The AT069 UV LED LAMP comes equipped with a battery chargeravailable in several different voltages.

1. Fully charge both batteries before first use.

2. Place the batteries in the battery charger cradle. The light on each battery,charger will show green when charged, and red when the battery is low. A ull charge for the batteries will take approximately 6 hours

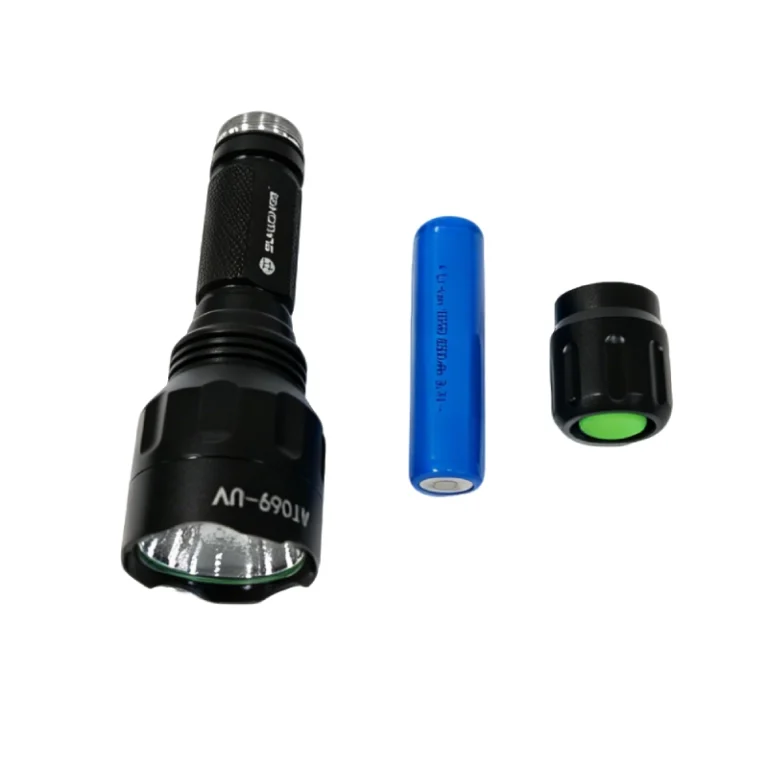

3. Turn the knob on the bottom of the flashlight to open the battery compartment. Insert one Li-on battery, positive end down, and close the compartment

4. AT069- 365 UV flashlight of the line design and The charger has special functions，it has polarity protection function( if you put the battery inside the aluminum cylinder with wrong polarity, the charger and flashlight can not explode . It’s very safety.).

5. Turn the knob on the bottom of the flashlight to open the battery compartment. Insert one Li-on battery, positive end down, and close the compartment.

6. The flashlight will operate for up to 2.5 hours on a fully charged battery, Press the switch to light and use the AT069-UV LED LAMP

Parameter of AT069 UV Flashlight

Model	AT069-Aerospace RRES90061	AT069-Standard Version	AT069-Hight Version
Light Cup	Flood light	Orange light cup (Mid light)	Smooth light cup (spot light)
Number of UV LEDs	1 x 5W 365NM UV LED	1 x 5W 365NM UV LED	1 x 5W 365NM UV LED
UV Intensity at 15inch(380mm)	2,000 uw/cm2	25,000 uw/cm2	35,000 uw/cm2
Visible light emission	< 1 FC(10 lux) with white light filters Meets ASTM E3022 and RRES 90061	< 2 FC(20 lux) with black light filters	< 2 FC(20 lux) with black light filters
Irradiated Area in 38cm Distance	150mm(Diameter)	80mm (Diameter)	50mm(Diameter)
Power supply	18650 lithium battery	18650 lithium battery	18650 lithium battery
Application	All Aeronautics NDT	Except Aeronautics NDT	Except Aeronautics NDT

Specifications

Model: AT069UV Series; AT069-Hight Version; AT069-Standard Version; AT069-Aerospace RRES90061
Abbreviation: AT069-H; AT069-S; AT069-AR (The Original Model: AT069-35K, 25K, 3K)
Lamp: 5W 365NM UV LED
Runtime (high): 2.5 hours
SIZE: 145mm * 45mm * 25mm
Weight: 160g (without batteries)
UV source: 365NM NICHIA of NCSU033B(T)
Intensity: >35000 μw/cm2 at 38 cm (15 inches)
Wavelength: 365 nm
Distribution angle (beam): spotlight
The centre of the light beam is Ø30 mm (1.2 inches)
The whole light beam is Ø50 mm, at a distance of 38 cm (15 inches)
Battery: 2200 mAh Lithium-Ion, 3.7 V
Running time: approx. 3 hrs. Charging time: approx. 8 hrs

Version

AT069 Series: AT069-Hight Version; AT069-Standard Version; AT069-Aerospace RRES90061.Abbreviation: AT069-H; AT069-S; AT069-AR （The Original Model:AT069-35K,25K,3K）(We master the core technology, We can adjust the UV intensity according to customer requirements)
