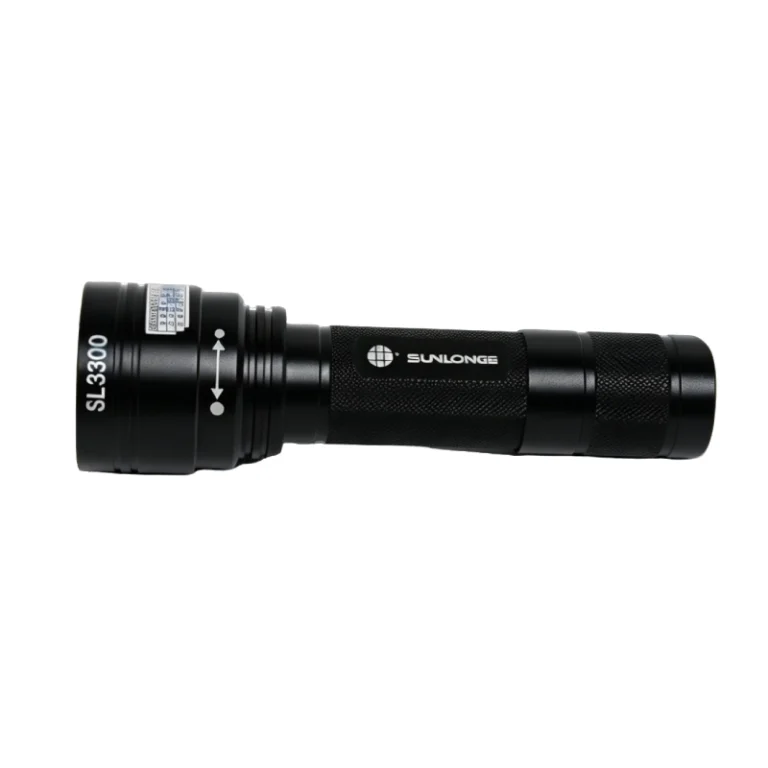

SL3300 UV LED Flashlight
Models: SL3300-S (Standard), SL3300-AR (Aerospace, meets Rolls-Royce RRES 90061)
Package: SL3300 UV light, charger, toolbox, UV filter glasses
Compliance: ASTM E1417 / E1444 / E709 / E2297 / E3022; meets UV-A requirements for FPI/MPI
Applications: Penetration testing, fluorescence detection;Biopolymers, fluorescence observation Refrigerant leak detection;Engine oil leak detection
Criminal Investigation: fingerprints, blood observed Fluorescence observation of ore;Detection of oil cleaning
Share:
What is SL3300 UV LED Flashlight？
SL3300 UV LED light is equipped with a 3W 365NM UV LED light source. Lifespan up to 30000H. Compact design and powered by AAA or 18650 battery. The UV intensity of SL3300 can be up to 60,000 uw/cm2 at 38cm distance.
Our UV lights are approved by customer from more than 30 countries. SL3300 UV light is a powerful tool for NDT and leak detection inspection.
Parameter of SL3300 UV LED Flashlight
| Model | SL3300-Aerospace RRES90061 | SL3300-Standard Version |
|---|---|---|
| Number of UV LED | 1 x 3W 365NM UV LED (Optical lens + filter) | 1 x 3W 365NM UV LED (Optical lens + filter) |
| UV Intensity at 15inch(380mm) | 5,000 μW/cm2 | 60,000 μW/cm2 |
| Visible light emission | < 2 FC(20 lux) with white light filters Meets ASTM E3022 and RRES 90061 | - |
| Irradiated Area in 38cm Distance | 50-80mm(Diameter) | 50-80mm(Diameter) |
| Power supply | 1pcs 18650 battery | 1pcs 18650 battery |
| Application | All Aeronautics NDT | Except Aeronautics NDT |
Why Choose/Features
- Compact design, easy to carry
- Adjustable beam area and UV intensity design
- The constant current driver keeps the UV intensity constant even the battery fades
Specifications
- LED No.: 1 pcs 3W 365NM SVC UV LED with lens
- Peak-wavelength: 365-370NM
- UV intensity: 60,000 uw/cm2 at 15 inch distance
- Irradiated Area: Ø 50-80mm at 38cm Distance

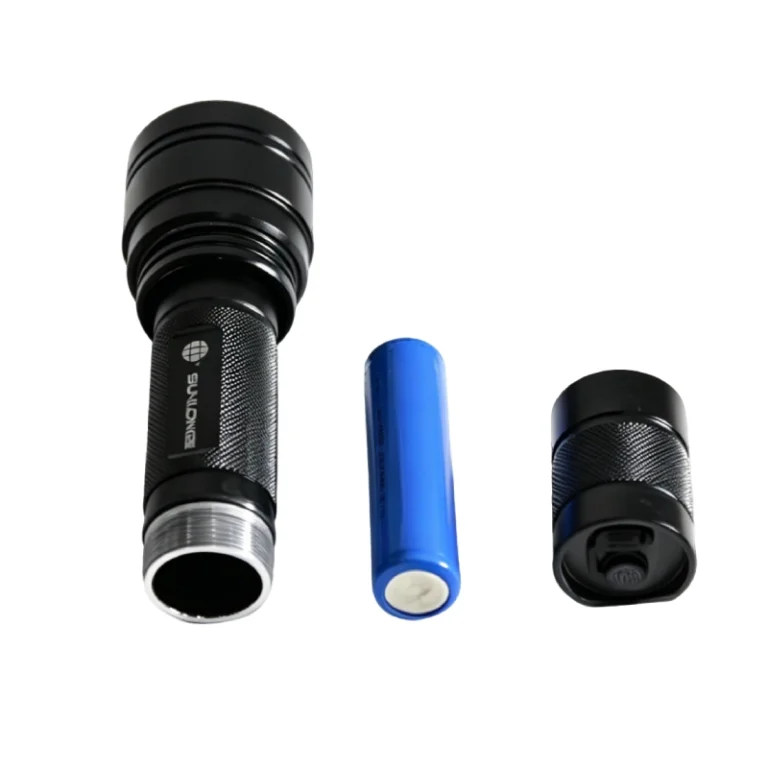

- Power supply: AAA battery or 18650 lithium battery
- Stability of UV Intensity: > 80%
- Weight: 150g without accessories
- Size: 40*140MM
Video
FAQ
Q1: What is the difference between SL3300-S and SL3300-AR?
A: SL3300-S (Standard Version) offers 60,000 μW/cm², and SL3300-AR (Aerospace RRES90061) offers 5,000 μW/cm² at 38 cm. The AR version also meets Rolls-Royce RRES 90061 and ASTM standards for FPI and MPI.

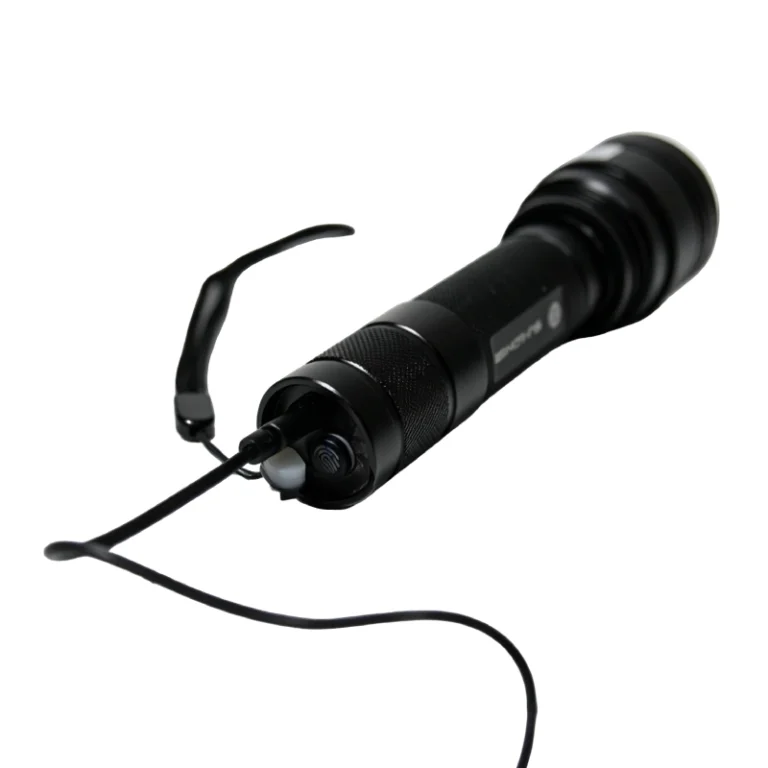

Q2: How to charge SL3300?
A: SL3300 has two models for different charging.
One is the Standard model. You need to remove the battery to charge it. The other one is Type C model and you can charge it directly. (Red light is on when charging while green light is on when fully charged.)
