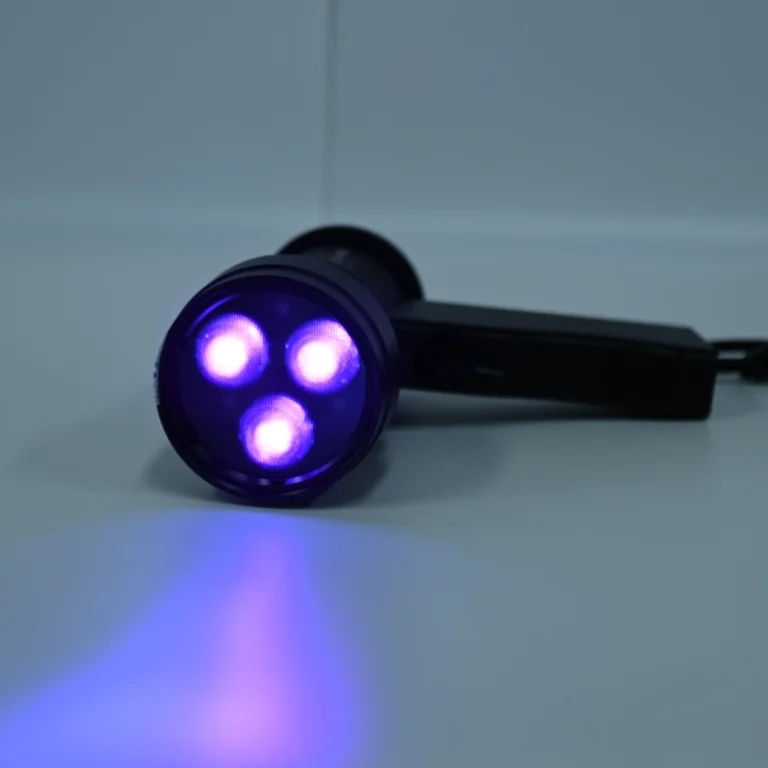

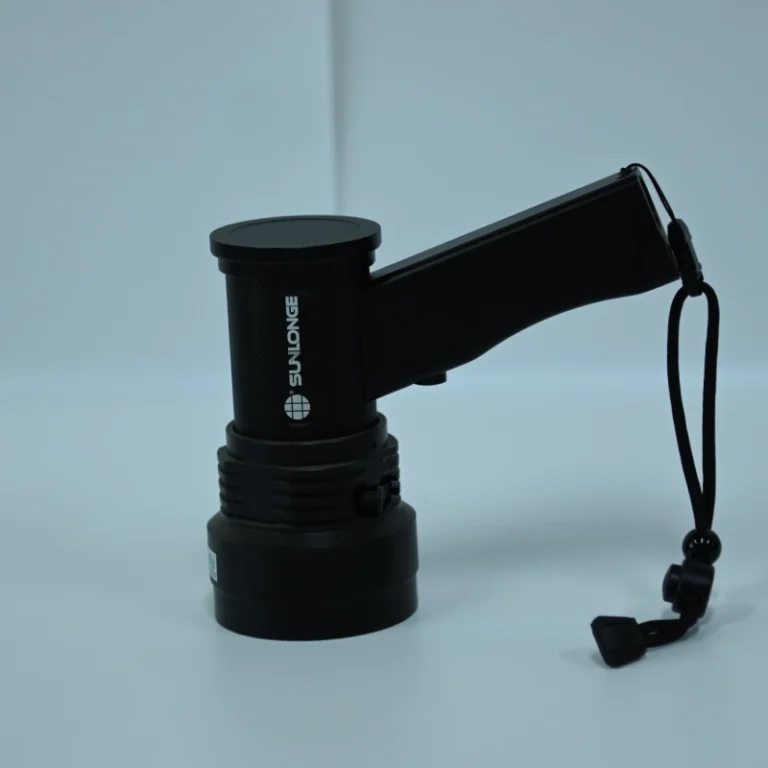

SL8803T Handheld Portable UV NDT Lamp
Peak wavelength: 365NM-370NM
UV intensity: 4,000uw/cm2-38,600uw/cm2-(38.1CM distance). We can customize it according to customer demand.
Light source: 3pcs 5W/15W 365NM UV LED, LED lifespan up to 30,000H.
Power supply: 100-240V AC/50HZ charger, Lithium-polymer battery pack.
Irradiated area: 130-160MM at 30CM distance
Stability of UV intensity: > 90%
Product size: 69*136*158MM
Net weight: 0.78kg without accessory
Share:
What Is SL8803T Handheld Portable UV NDT Lamp？

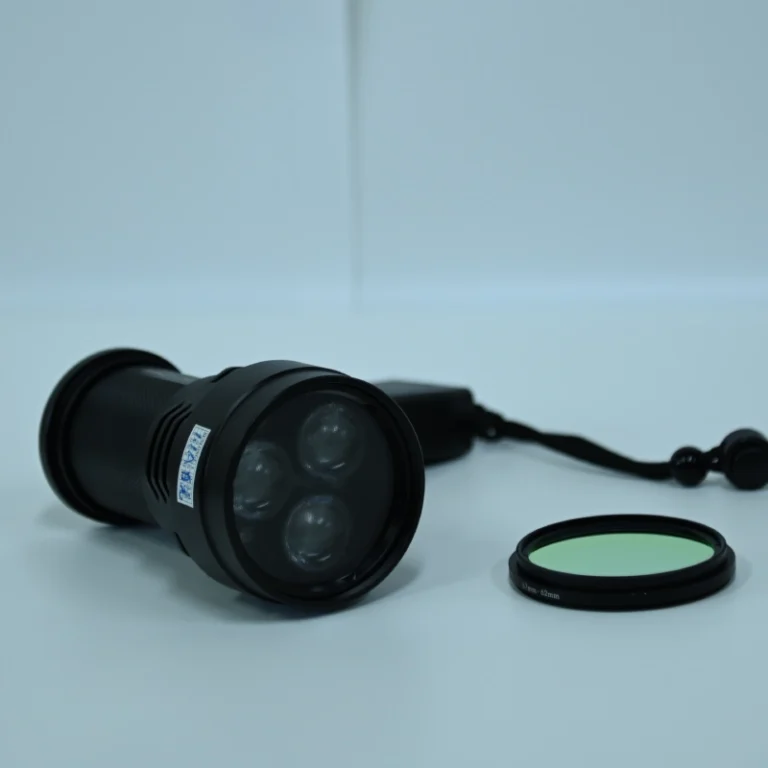

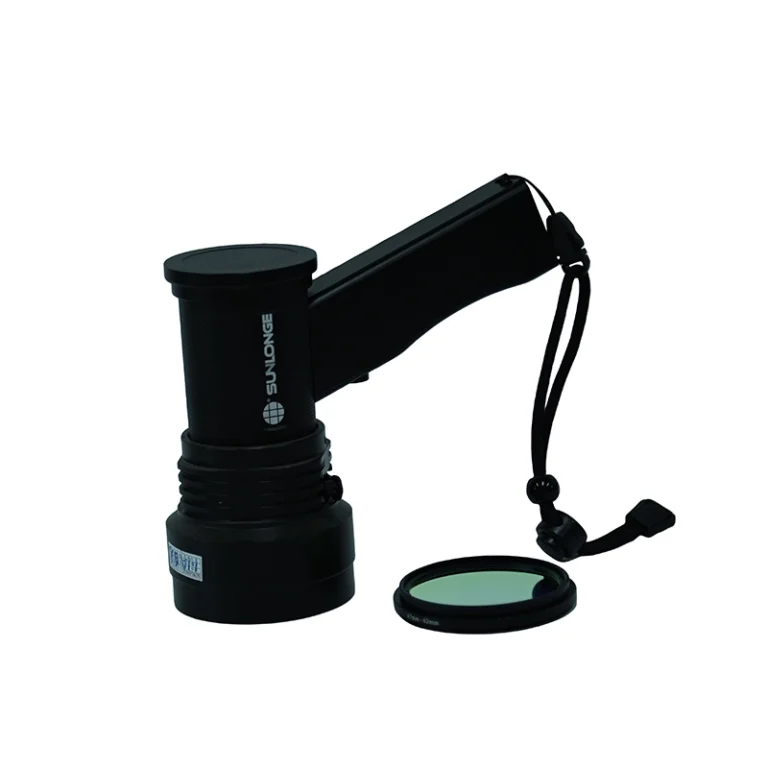

SL8803T series use the most advanced LED cold light source technology. It is with SVC and Nichia 5W-15W 365NM UV LED light source and optical lens. The LED lifespan can be up to 30,000H. UV intensity can be up to 4,000-38,600 μW/cm2. The irradiated area can be 160MM(38.1CM distance). Compact lamp head design, small cylinder body can be easily carried to the narrow space room, especially suitable for the fluorescent penetration testing and fluorescent magnetic particle testing on the ships, pressure vessels, fan blades and other special equipment. Hand-held design, a tripod can be added, convenient for different scenarios of testing. The filter interface on the lamp head. A customized filter can be added for some special requirements, just install the filter directly on the lamp head.
Parameter of SL8803T Handheld Portable UV NDT Lamp
| Product model | SL8803T-H | SL8803-S | SL8803-AR |
|---|---|---|---|
| UV LED NOs | 3*15W 365NM UV LED | 3*5W 365NM UV LED | |
| UV intensity(38CM) | 38600uw/cm2 | 21000uw/cm2 | 4000uw/cm2 |
| Visible light emission | No requirement | < 1FC(10lux) with white light filters meet ASTM E3022 and RRES 90061 standard | |
| Irradiated area(38CM) | 130 mm(Diameter) | 160 mm(Diameter) | |
| Power supply | Lithium- polymer battery pack | ||
| Applied industry | Except Aeronautics NDT | All Aeronautics NDT | |
Specifications
- Peak wavelength: 365NM-370NM
- UV intensity: 4,000uw/cm2-38,600uw/cm2-(38.1CM distance). We can customize it according to customer demand.
- Light source: 3pcs 5W/15W 365NM UV LED, LED lifespan up to 30,000H.
- Power supply: 100-240V AC/50HZ charger, Lithium-polymer battery pack.
- Irradiated area: 130-160MM at 30CM distance
- Stability of UV intensity: > 90%
- Product size: 69*136*158MM
- Net weight: 0.78kg without accessory
Main Purposes
A: Fluorescence detection
iron and steel, non-ferrous metals, automobiles, aircraft, fluorescent penetrant inspection, fluorescent magnetic particle inspection.
B: Pollution check
electronic components, boards, dust inspection, LCD panel, checked into the clean room.
C: Leak Check
hydraulic machines, sump, pipe and other oil spill inspection, leak detection using fluorescent agents.
D: Degreasing cleaning validation
the food industry, kitchen, cooking utensils, tableware degreasing cleaning
Package
Standard Package:

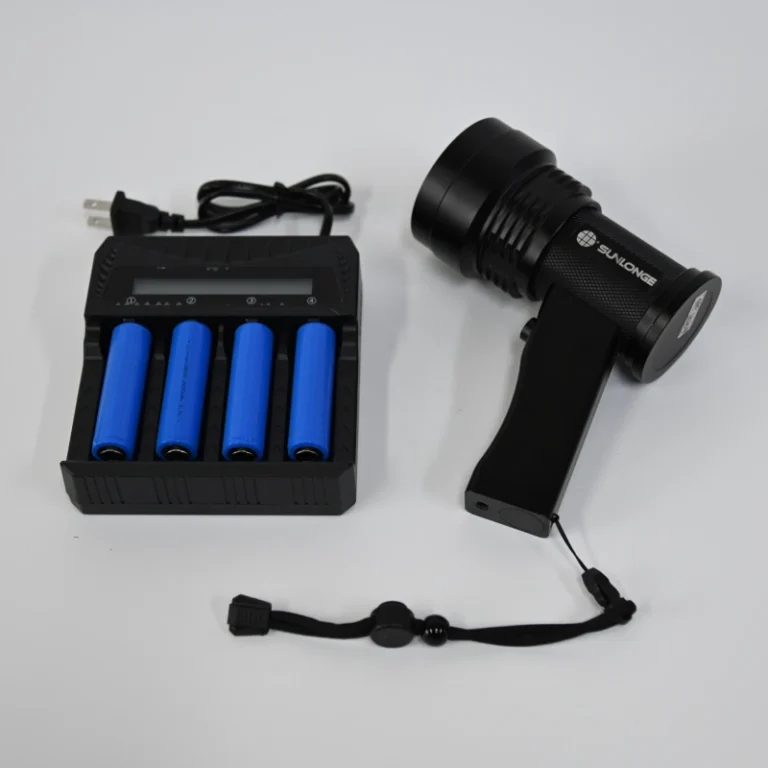

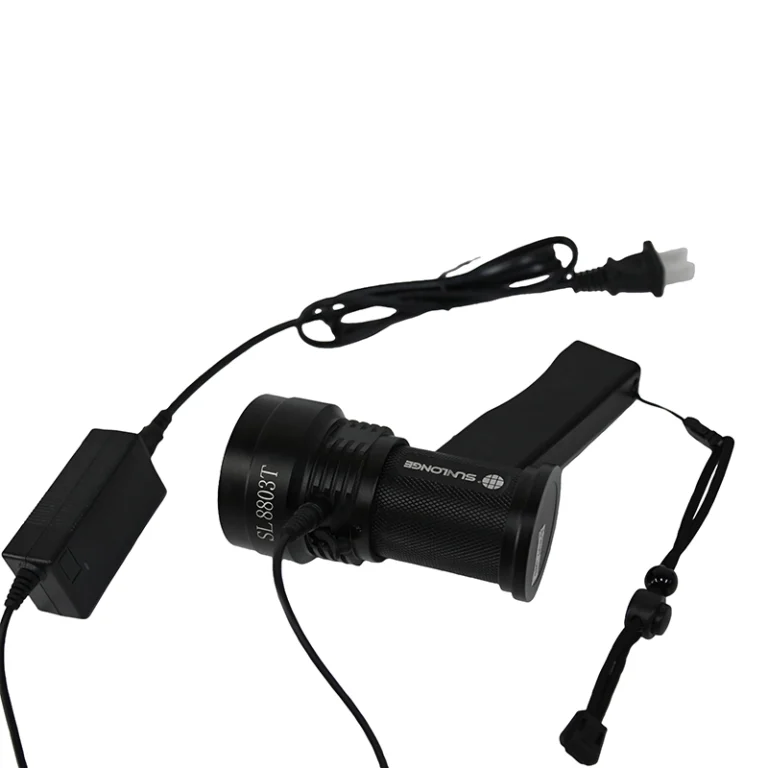

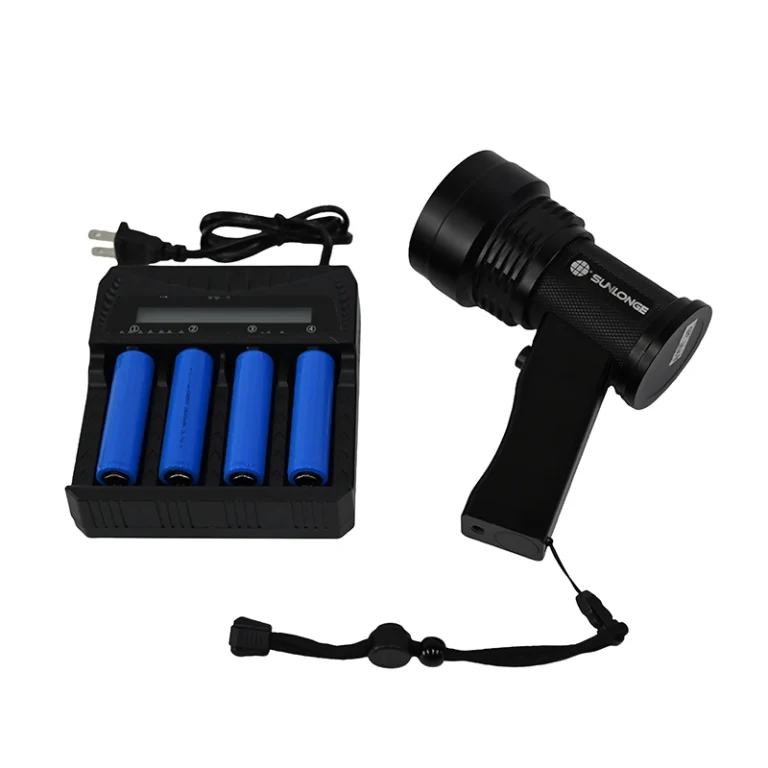

- SL803T UV NDT lamp, charger, waterproof tool kit.
Optional accessory:
- Tripod, Spare UV filter glasses, filter.
Application
Penetration testing
Fluorescence detection
Biopolymers
在此添加您的标题文本
Fluorescence observation
Refrigerant leak detection
Engine oil leak detection
Criminal Investigation: fingerprints, blood observed
Fluorescence observation of ore
Detection of oil cleaning
Variants
- SL8803T series: SL8803T-S, SL8803T-H, SL8803T-AR
- Note: SL8803T-AR version, with optical coated filter to filter the visible light emission, meets ASTM E 3022, ASTM E 1444, ASTM E 1417 and Rolls-Royce RRES 90061 standard.
