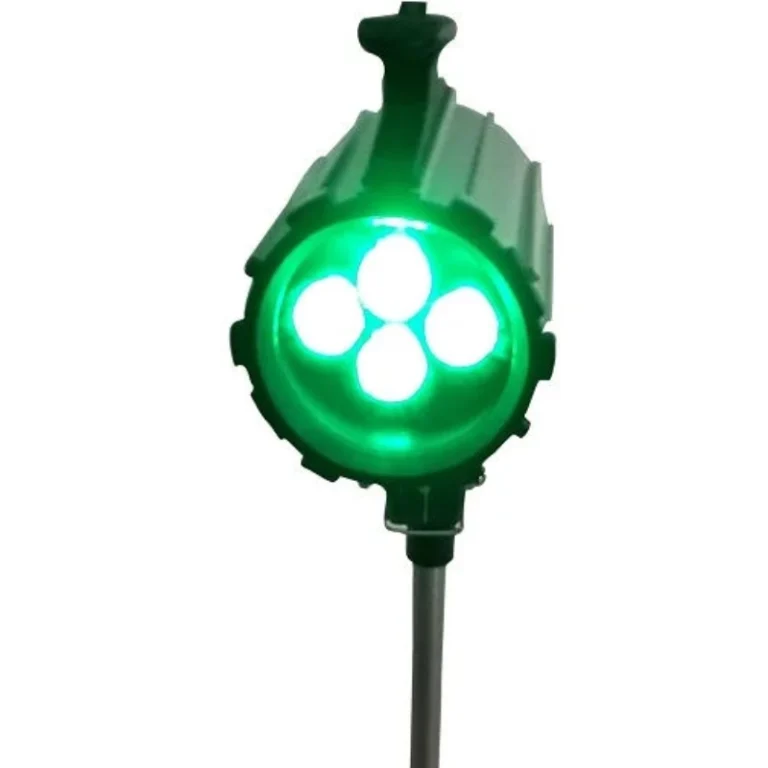

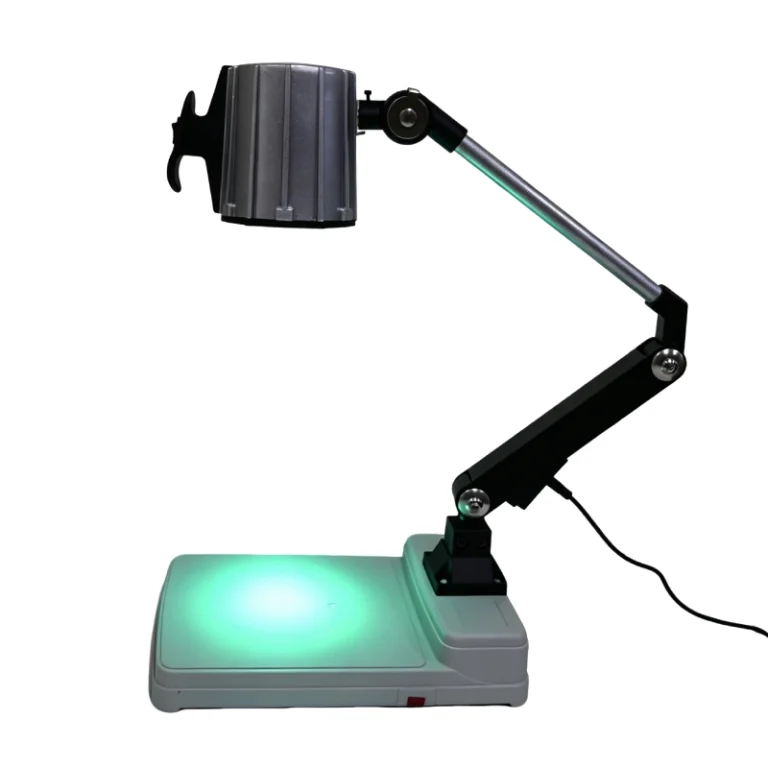

SL8804-G Wafer Dust Particle Surface Defect Desktop Inspection Lamp
LED: Use 4 pcs 5W 525 NM LED with lens, average LED life is 30,000 hours
Light Intensity: 50000 lx at 30cm
Irradiated Area in 45 cm Distance: Ø18
Power Supply: 100-240 AC/50HZ
Stability of LED Lamp: > 90%
Product Size: 116*108mm
Weight: 960g without accessories
Share:
What is SL8804-G Inspection Lamp?
SL8804-G is with green light source inspection lamp.
The principle: The LED source will emit special wavelength light source through the refraction of optical lens. With the light on the surface of sample, the inspector can detect the dust, scratches, glitch, ink etc. It can take the place of traditional lighting device and optical system machine. The inspector can detect the defect and flaws directly of test sample by the light source and human eyes. It can help greatly save the purchase cost.
The SL8804-G is with 510-590NM light source, which is sensitive to human vision, with the green and yellow compound light source. The illuminance can reach up to 50 000lx, meanwhile the lifespan can reach up to 30 000H. It can detect the dust particles in the 1um size range, which is 10 time powerful than the traditional inspection lamp.
Parameter of SL8804-G Inspection Lamp
| Model | SL8804-G | Remark |
|---|---|---|
| LED No. and specification | 4 pcs 5W 525 NM LED with lens (365NM; 455NM; 595NM; 625NM optional) | We can customize the lamp according to your demand |
| Wavelength | 525NM LED | |
| Illuminance | 48000LX→at 45cm distance; 680000LX→at 30cm distance | |
| Irradiated area | Ø 16.8 cm → at 40cm distance | |
| Dimming | Infinite dimming, 0%~~100% by the modulator | |
| Lifespan | 30000H | |
| Size and weight | 116*108MM. Weight: 0.96Kg without accessories | |
| Accessory | protective glasses |
Features
1.Lifespan up to 30 000H, 10 time longer than the mercury-vapor light.
2. White light or green yellow light, sensitive but do not to harm the human vision. Detect the scratches and dust particles at the 10um size range.
3. Mechanical cooling. Provide stable and high illuminance special wavelength light source.
4. You can choose different wavelength light source (365NM, 455NM, 525NM, 595NM, 625NM, 6000K optional)
Specifications
Light Source: Use 4 pcs 5W 525 NM LED with lens, average LED life is 30,000 hours
Light Intensity: 50000 lx at 30cm
Irradiated Area in 45 cm Distance: Ø18
Power Supply: 100-240 AC/50HZ
Irradiated Area in 45cm Distance: Ø20cm
Stability of LED Lamp: > 90%
Product Size: 116*108mm
Weight: 960g without accessories
Applications
- Quality inspection of TFT-LCD panel
- Color filters, touch panel
- Cell Gap MURA
- Inspection of film thinkness
- Examination of surface flathess
- Examination of optical film materials
