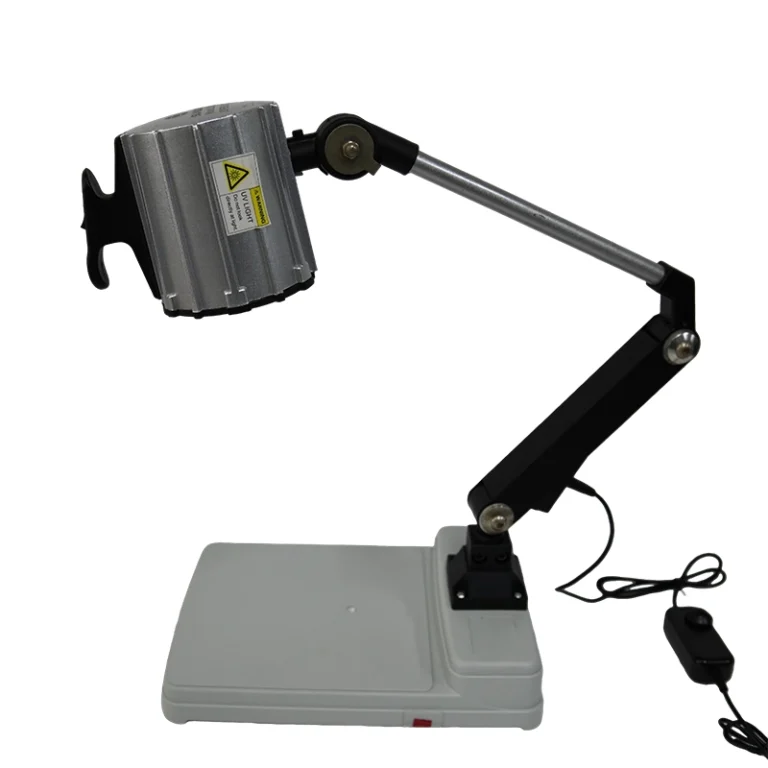

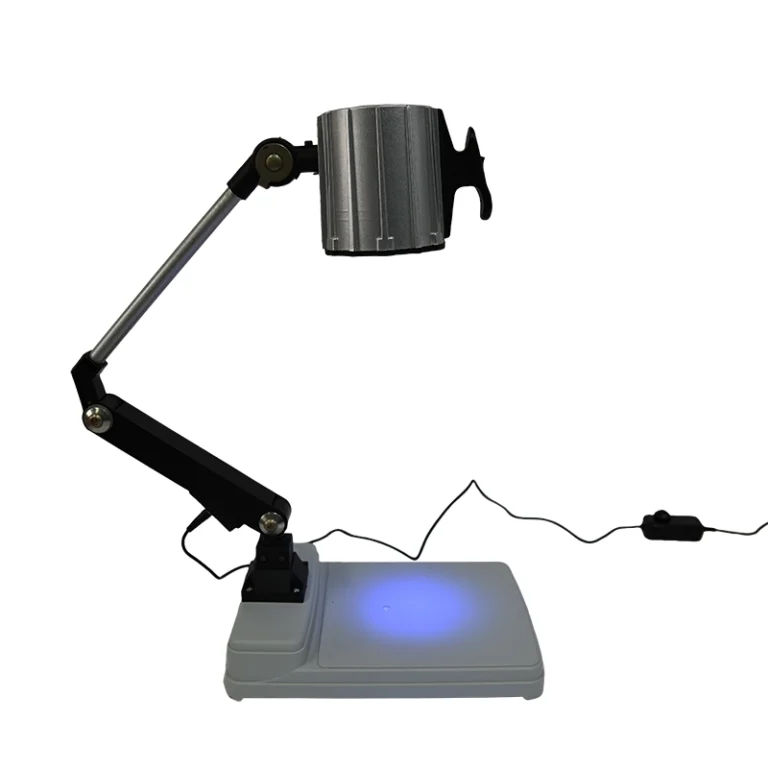

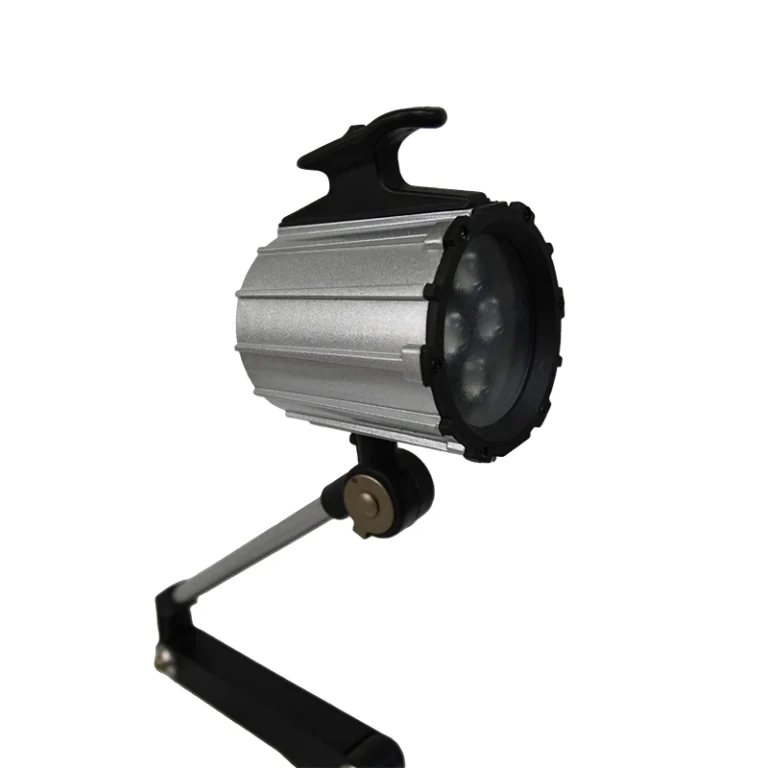

SL8804 Super UV LED Lamp
Peak-Wavelength:365-370NM;
UV Intensity:4000-21000UW/cm2 at 15inch(380mm)- -See the list;
Low visible light emission :less than 2 foot-candles (22 lux)
Number of UV LEDs: 4 x 5W 365NM UV LED with lens, average LED life is 30,000 hours
Power supply: 100-240V AC; AC Power Code: 3 M length.
Irradiated Area in 38cm Distance:150*180mm
Stability of UV Intensity: > 90%
Product Size: 220*210*110mm
WEIGHT: 920g without accessories
Share:
What is SL8804 Super UV LED Lamp？
SL8804 Series adapt the most advanced LED cold light source technology, they uses Nichia 5 Watt 365nm of NCSU033B(T) and Optical lenses.The LED life is 30,000 hours.
UV-A Intensity is 21,000UW/cm2 in 38cm Distance. Ergonomic design reduces the operator stress, 4x SPOT 365 nm UV LED with reflection mirrow universal module design for AC and DC operation simple operation.
Parameter of SL8804 Super UV LED Lamp
| Model | SL8804 AC-Aerospace RRES90061 | SL8804 AC-Standard Version | SL8804 AC-Hight Version |
|---|---|---|---|
| Number of UV LEDs | 4 x 5W 365NM UV LED | The Smae | The Same |
| UV Intensity at 15inch(380mm) | 4000-5000uw/cm2 | 13000uw/cm2 | 21000uw/cm2 |
| Visible light emission | < 0.5 FC(5 lux)with white light filters Meets ASTM E3022 and RRES 90061 | < 2 FC(20 lux) with black light filters | < 2 FC(20 lux) with black light filters |
| Irradiated Area in 38cm Distance | 180*260mm | 130*180mm | 120*160mm |
| Power supply | 100-240V AC; AC Power Code: 3 M length | The Same | The Same |
| Suitable for industry | All Aeronautics NDT | Except Aeronautics NDT | Except Aeronautics NDT |
Features
- 5W 365NM NICHIA True 365 nm wavelength UV light;
- Less than 2 FC Candles of white Light;
- 3.Instant On/Off, no warm up or cooling down time;
- No filter or bulbs to replace; Mercury free;
- 100% solid state cold ensures working properly in strong magnetic field.
Main Purposes
A: Fluorescence detection
iron and steel, non-ferrous metals, automobiles, aircraft, fluorescent penetrant inspection, fluorescent magnetic particle inspection.
B: Pollution check
electronic components, boards, dust inspection, LCD panel, checked into the clean room.
C: Leak Check
hydraulic machines, sump, pipe and other oil spill inspection, leak detection using fluorescent agents.
D: Degreasing cleaning validation
the food industry, kitchen, cooking utensils, tableware degreasing cleaning.
Package
Standard Package:
- SL8804, carry case
Optional accessories:
- Spare UV Filter Glasses
Application
Penetration testing, fluorescence detection;Biopolymers, fluorescence observation
Refrigerant leak detection;Engine oil leak detection
Criminal Investigation: fingerprints, blood observed
在此添加您的标题文本
Fluorescence observation of ore;Detection of oil cleaning
Variants
- SL8804 AC Series: SL8804-Hight Version, SL8804-Standard Version, SL8804-Aerospace RRES90061
- Abbreviation: SL8804-H; SL8104-S; SL8804-AR (We master the core technology, We can adjust the intensity of the UV according to customer requirements)
Attention to
- SL8104-Aerospace RRES90061 Meets Rolls-Royce RRES 90061 Requirements
- ASTM E1417, ASTM E1444, ASTM E 709, ASTM E2297, ASTM E3022 compliant
- Meets ASTM UV-A intensity and wavelength specifications for FPI and MPI.
