What is SLC6300 Collimated LED Light Sources？
The collimated LED Flexible gooseneck lamp holder and power supply; Light modulator: a customized design dimmer, can adjust the brightness of the collimated LED Light, from 0-100%.

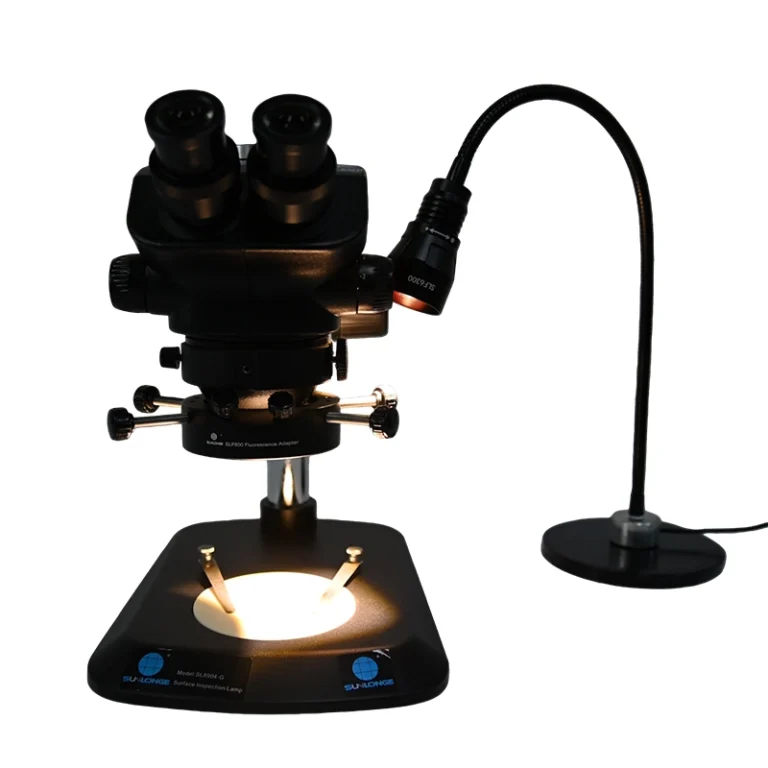

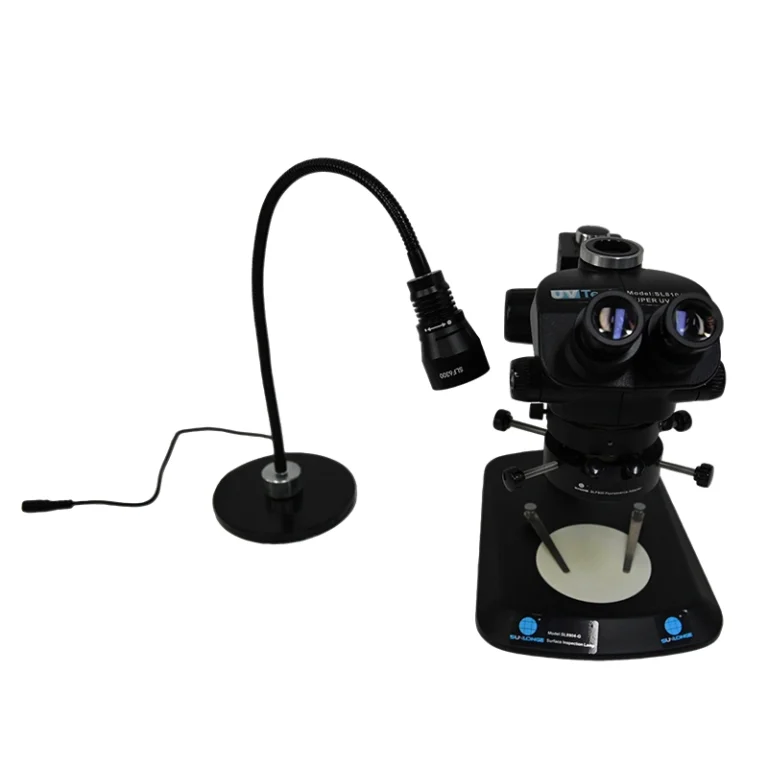

Flexible gooseneck lamp holder and power supply. The head can be rotated.
The SLC6300 controls the size of the irradiated area by adjusting the focal length.
Parameter of SLC6300 Collimated LED Light Sources
| Model | SL6300-Aerospace RRES90061 | SL6300-Standard Version |
|---|---|---|
| Number of UV LEDs | 1 x 5W 365NM UV LED,Optical lens + filter | 1 x 5W 365NM UV LED,Optical lens + filter |
| UV Intensity at 15inch(380mm) | 3500/cm2 | 35000uw/cm2 |
| Visible light emission | < 0.5 FC(5 lux)with white light filters Meets ASTM E3022 and RRES 90061 | < 2 FC(20 lux)with black light filters |
| Irradiated Area in 38cm Distance | 50-100mm(Diameter) | 100mm(Diameter) |
| Power supply | Polymer battery pack DC | The Same |
| Suitable for industry | All Aeronautics NDT | Except Aeronautics NDT |
Features
A: Multiple UV Intensity Options
Flexible gooseneck lamp holder and power supply，SUNLONGE The collimated LED direct illumination of various targets like microplate, petri dish etc，They are easy for customers to use and choose.
B: Light modulator
A customize-design dimmer, can be adjust the brightness of excitation light source, from 0-100%.
C: The head can be rotated
The SLC6300 controls the size of the irradiated area by adjusting the size of the focal length;can be adjust the brightness of excitation light source, from 0-100%.
D: Mounting Options
Multiple mounting features for lab and OEM applications.
Product Details

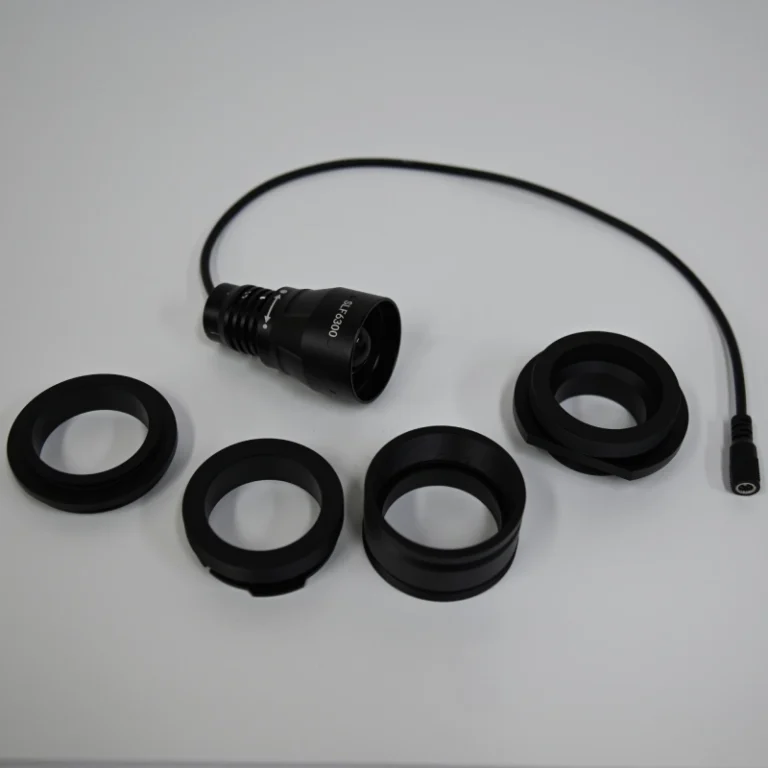

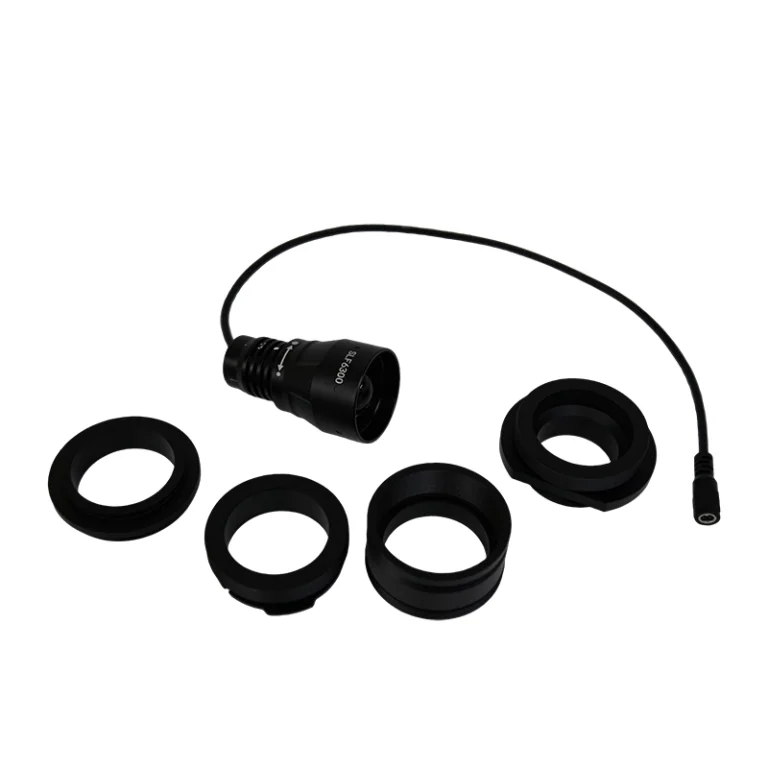

- SLC6300 the Collimated LED Light Sources consists of a collimating lens and an LED Controller. SUNLONGE Collimated LED Light Sources built-in adjustable and employ a high-NA aspherical collimating lens for precision collimation and high light throughput.

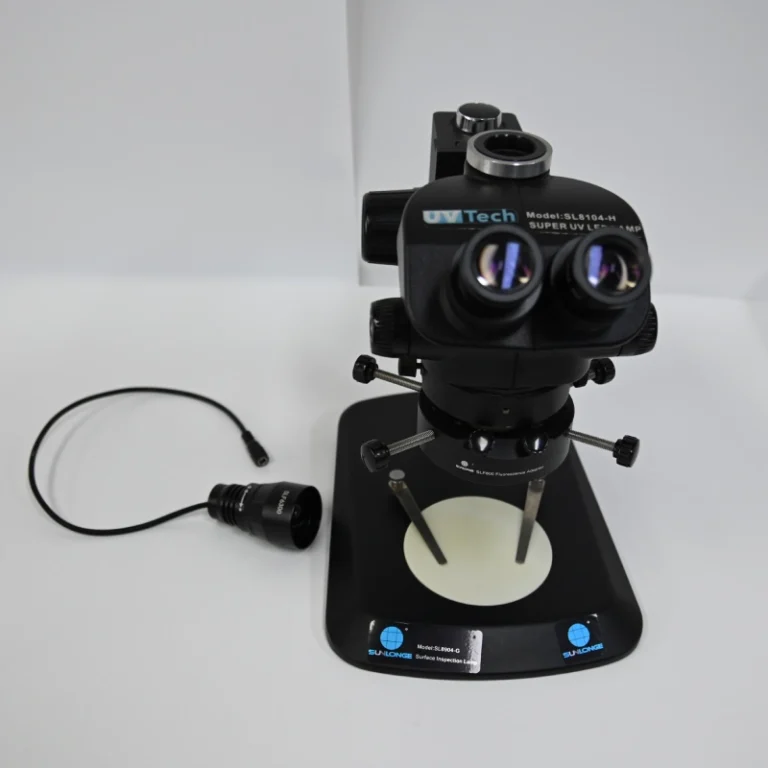

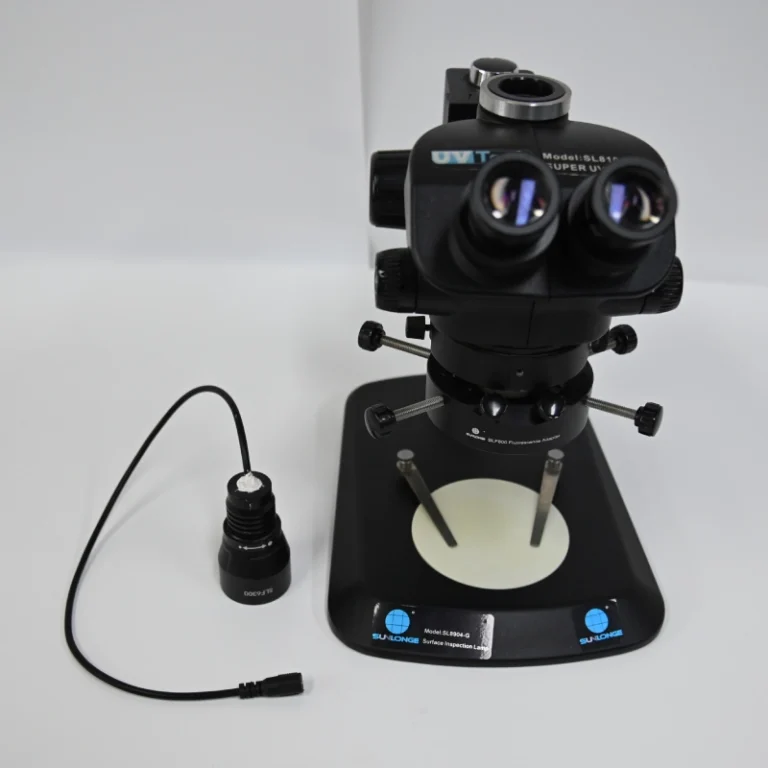

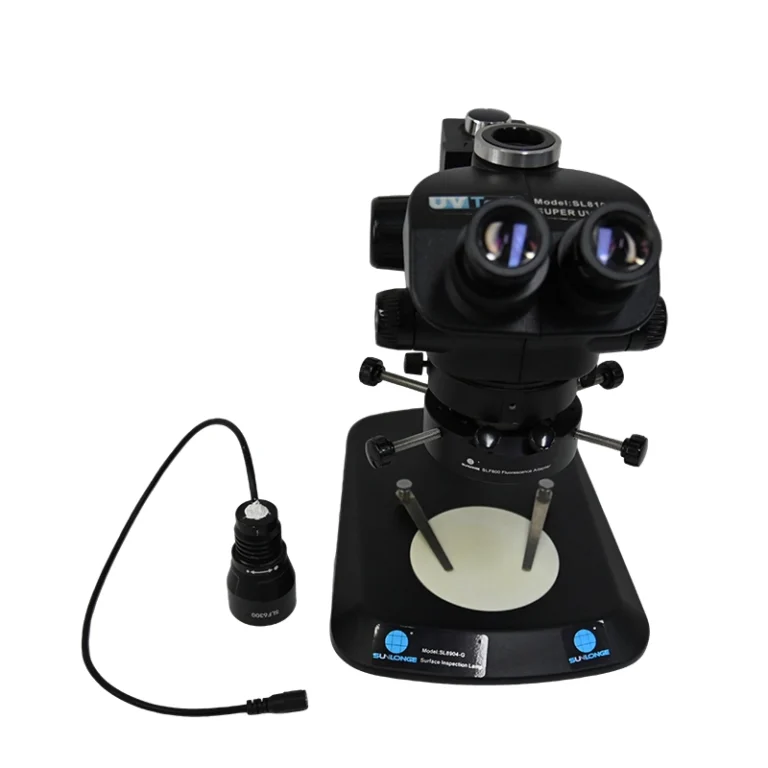

- SLC6300 Collimated LED Light Sources can be used as the light source in an illumination system microscope；applications such as microscope illumination, multicolor fluorophore excitation..For example LED collimators can replace the standard lamp assembly in a microscope to provide stable, intense, and fast-modulated illumination.
- SUNLONGE The collimated LED direct illumination of various targets like microplate, petri dish etc，They are easy for customers to use and choose.
- Flexible gooseneck lamp holder and power supply, modular light source, can be combined freely.
- Light modulator: a customize-design dimmer, can be adjust the brightness ofCollimated LED Light , from 0-100%.
Applications
- Microscope illuminator
- General purpose light source
