What is SLC9300 Collimated LED Light Sources？
The collimated LED Flexible gooseneck lamp holder and power supply. Light modulator: a customize-design dimmer, can be adjust the brightness ofCollimated LED Light, from 0-100%. Flexible gooseneck lamp holder and power supply, The head can be rotated.
The SLC9300 controls the size of the irradiated area by adjusting the size of the focal length. The collimated LED can be connected to other components through SM2 threads. epi-fluorescence port of fluorescence microscope, or direct illumination of various targets like microplate, petri dish et. They are easy for customers to use and choose.
Parameter of SLC9300 Collimated LED Light Sources
| Model: | SLC9300 Collimated LED Light Source |
|---|---|
| Wavelength | 365NM/395NM/405NM/455NM/525NM/625NM |
| Electric Power | 30 W |
| Beam area（MM） | 60-150MM |
| Dimming | 10-100% Had rotation dimming and light modulator |
| Optical Power | Modulator（Input110-240V, Output: 12-24V,1.5A）Infinitely dimming |
| Size and weight | Size: 138 x10 mm(Round base)，Arm length:600mm，Lamp head：63*116MM; Weight：2.3KG(w/o AC modulator)180 * 190 * 106mm; |
LED Typical Optical Characteristics:
| Peak Wavelength（nm） | Range（nm） | Maximum Optical Power（mW） | Spectral FWHM（nm） |
|---|---|---|---|
| 365 | 365-370 | 2000 | 17 |
| 395 | 395-400 | 1200 | 13 |
| 405 | 400-405 | 1500 | 13 |
| 450 | 450-460 | 3000 | 16 |
| 530 | 525-530 | 1300 | 85 |
| 550 | 550-560 | 1300 | 85 |
| 595 | 590-600 | 1200 | 85 |
| 630 | 625-630 | 1300 | 17 |
Features
A: Multiple UV Intensity Options
Flexible gooseneck lamp holder and power supply，SUNLONGE The collimated LED direct illumination of various targets like microplate, petri dish etc，They are easy for customers to use and choose.
B: Light modulator
a customize-design dimmer, can be adjust the brightness of excitation light source, from 0-100%,
C: The head can be rotated
The SLC9300 controls the size of the irradiated area by adjusting the size of the focal length;can be adjust the brightness of excitation light source, from 0-100%,
D: Filters and Mounting Versatility
Different narrow band filters can be used: conventional ones are 455NM/525NN/625, etc.Multiple mounting features for lab and OEM applications.
Product Details

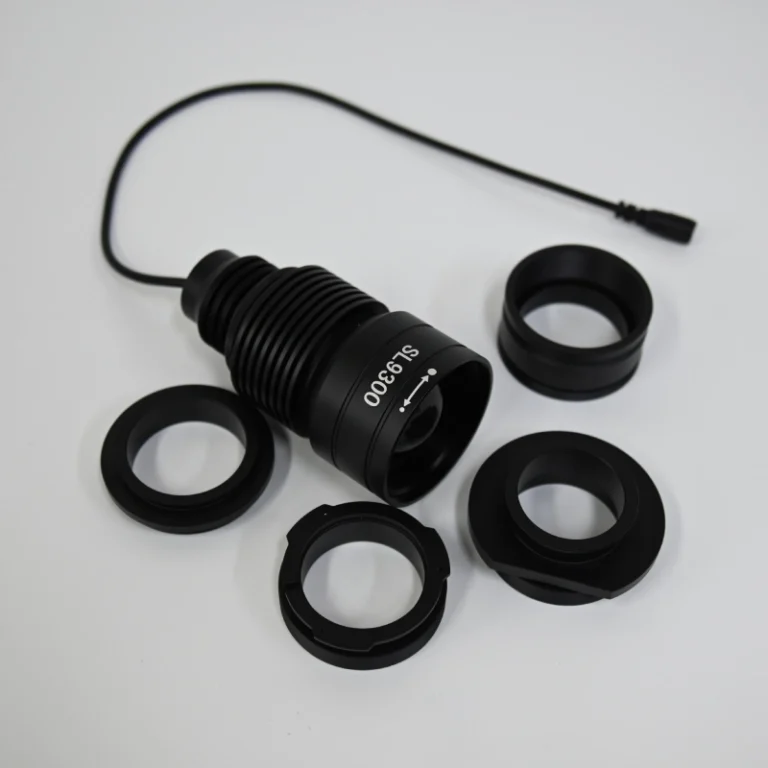

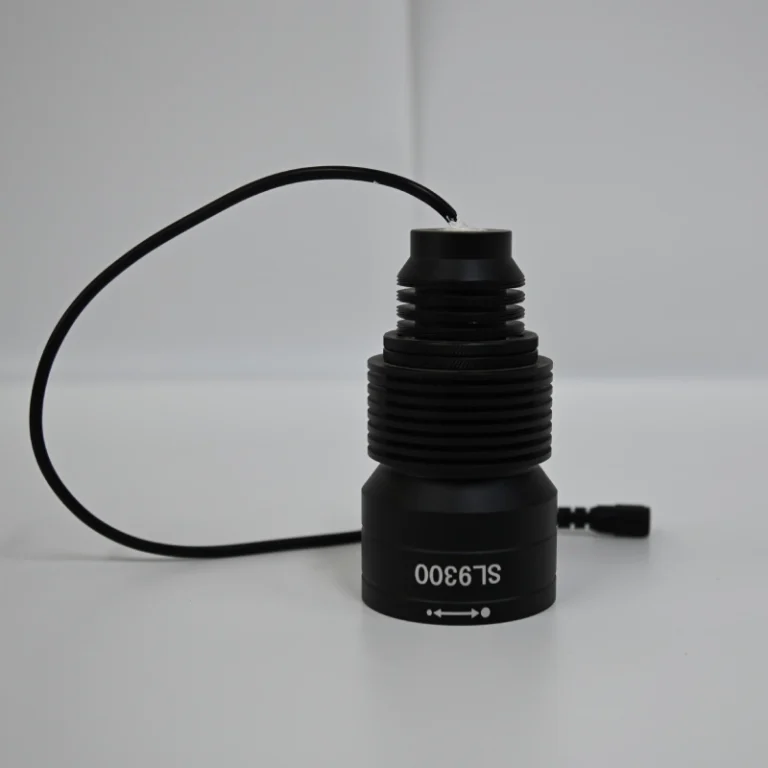

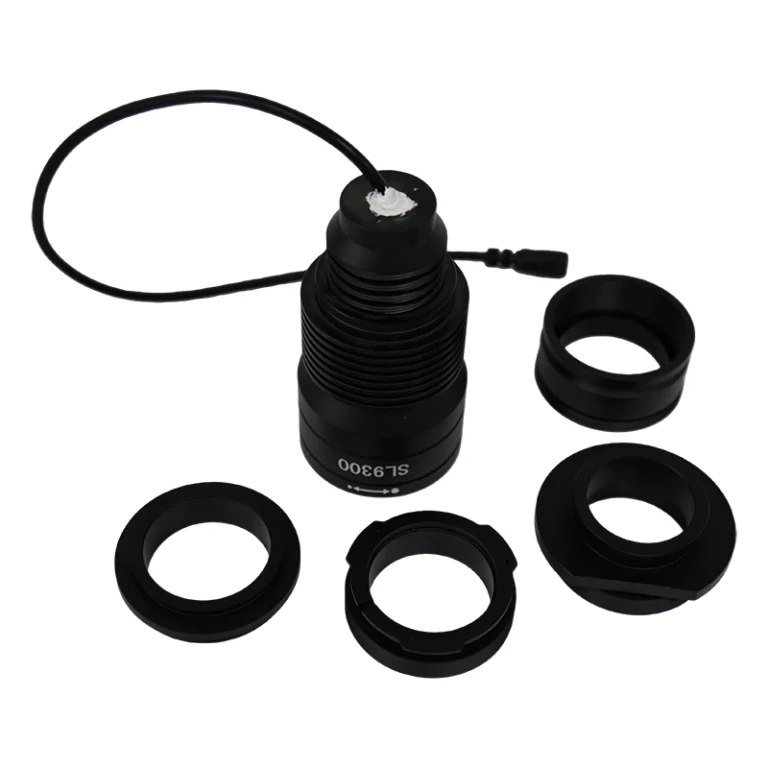

- SLC9300 the Collimated LED Light Sources consists of a collimating lens and an LED Controller. SUNLONGE Collimated LED Light Sources built-in adjustable and employ a high-NA aspherical collimating lens for precision collimation and high light throughput.

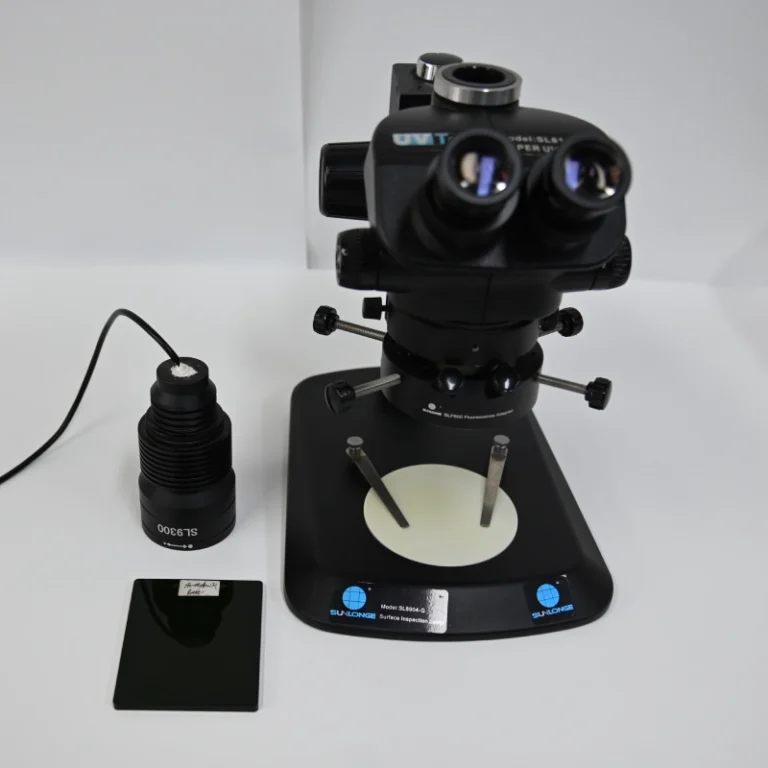

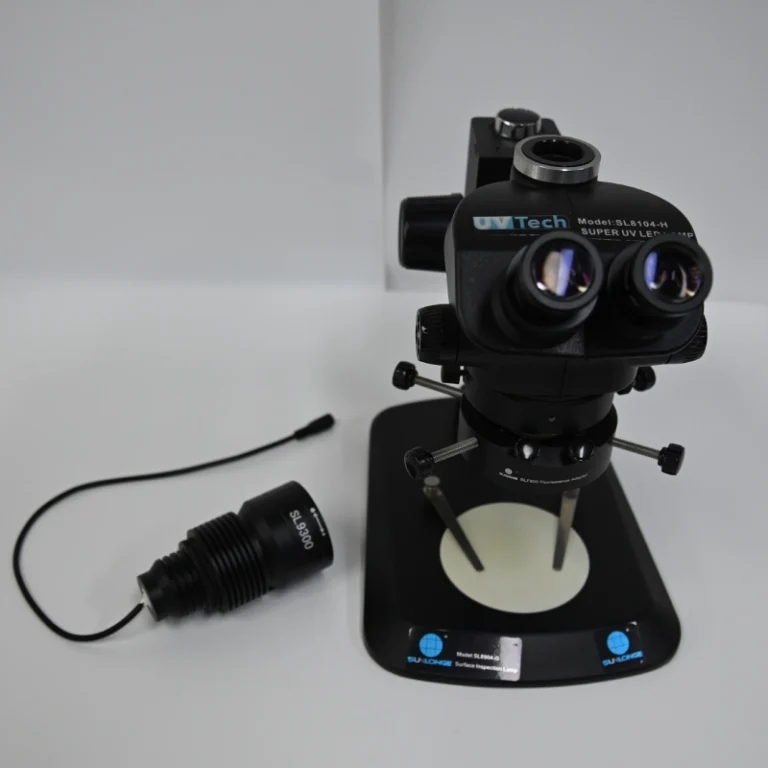

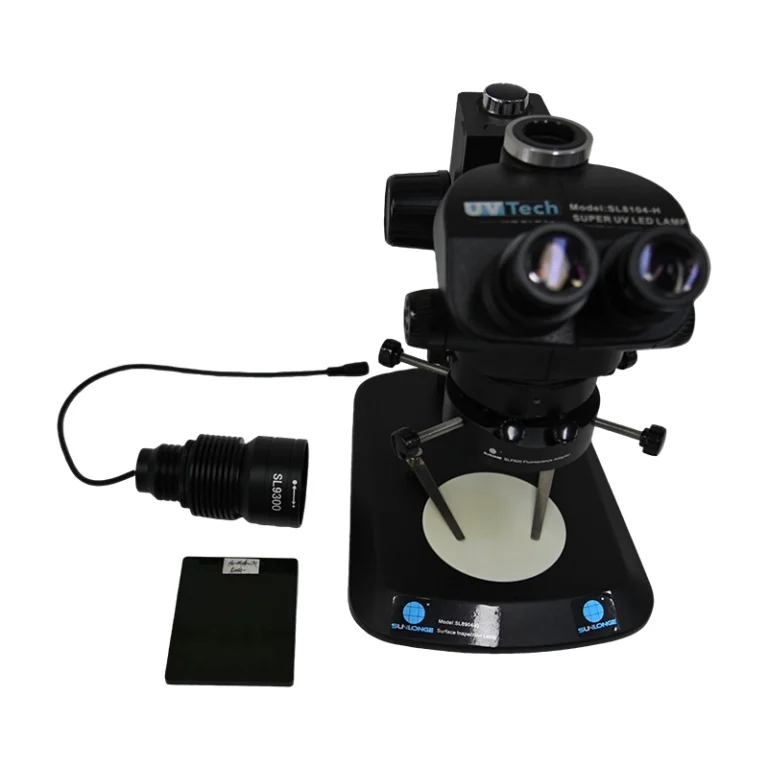

- SLC9300 Collimated LED Light Sources can be used as the light source in an illumination system microscope；applications such as microscope illumination, multicolor fluorophore excitation..For example LED collimators can replace the standard lamp assembly in a microscope to provide stable, intense, and fast-modulated illumination.
- The collimated LED direct illumination of various targets like microplate, petri dish etc. They are easy for customers to use and choose.

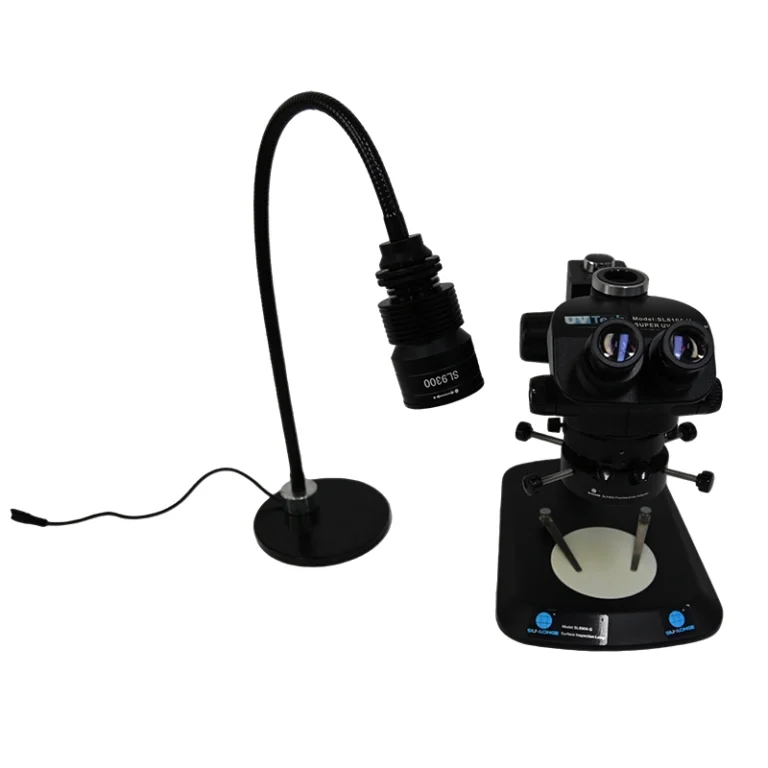

- Flexible gooseneck lamp holder and power supply, modular light source, can be combined freely.
- Light modulator: a customize-design dimmer, can be adjust the brightness of Collimated LED Light , from 0-100%.
Applications
- Microscope illuminator
- General purpose light source
