SLF9300 Dual Wavelength Fluorescence LED Light Source
Share:
What is SLF9300 Dual Wavelength Fluorescence LED Light Source

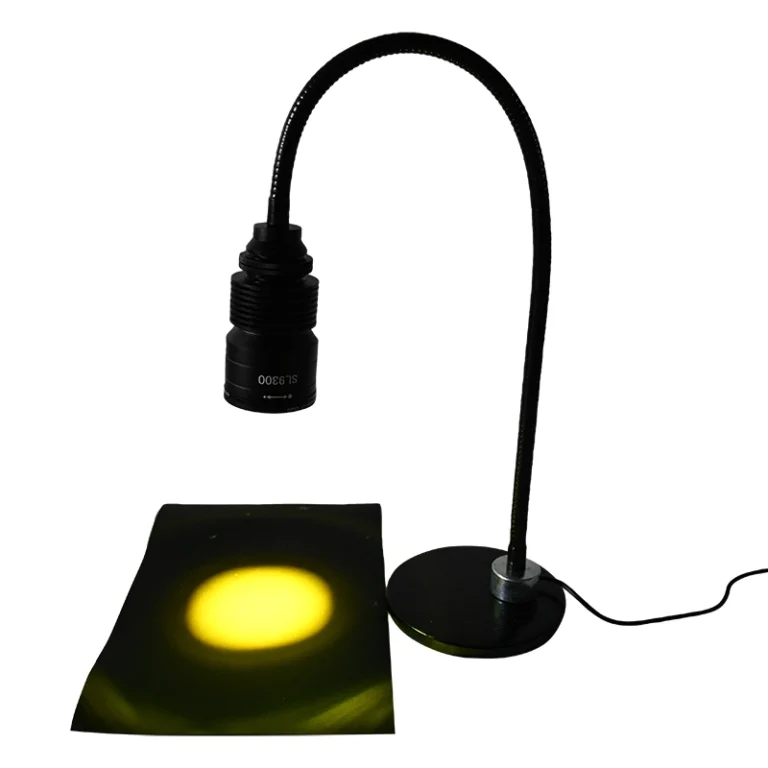

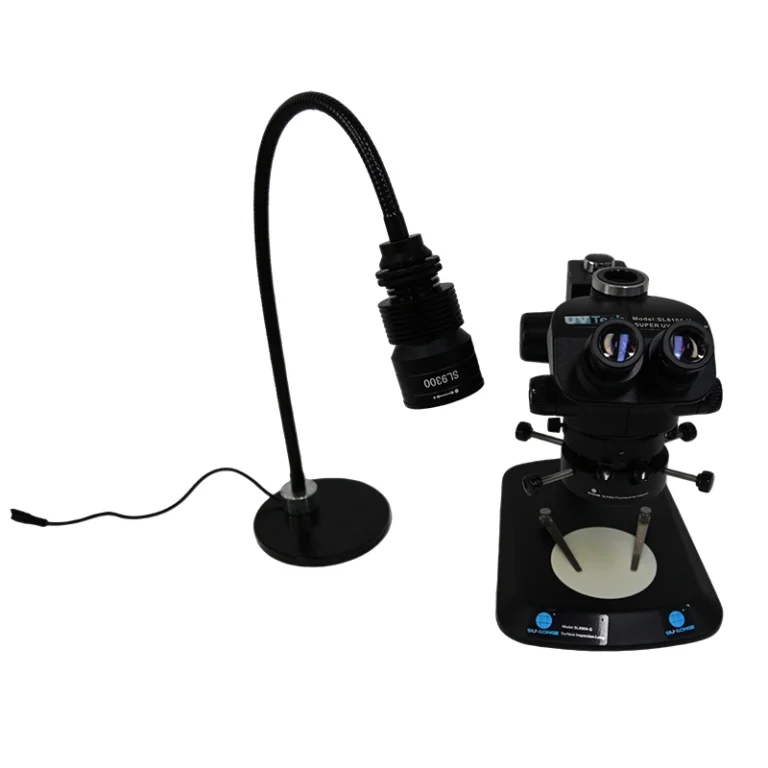

SLF9300 is with 1 pcs imported LED and customize-design filter. One lamp with dual wavelength, can excite different fluorescent proteins to fluoresces.SLF9300 is with desktop design, compact lamp head with gooseneck hose and a magnetic base, portable and easy to move in the inspection.
In the real inspection, dual wavelength can better fulfill the protein fluorescence excitation demand. We developed the SLF9300 dual wavelength series, 1 pcs LED with different customize-design filter, achieving two wavelength transformation. The observation filter for photography, without destroying the stereo microscope, easily observe all the protein excitation result.

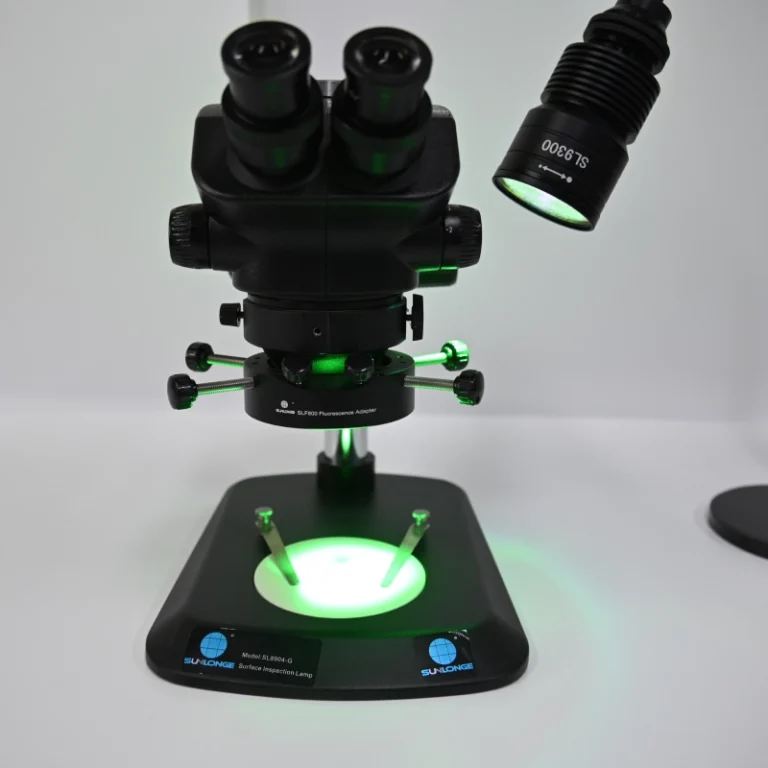

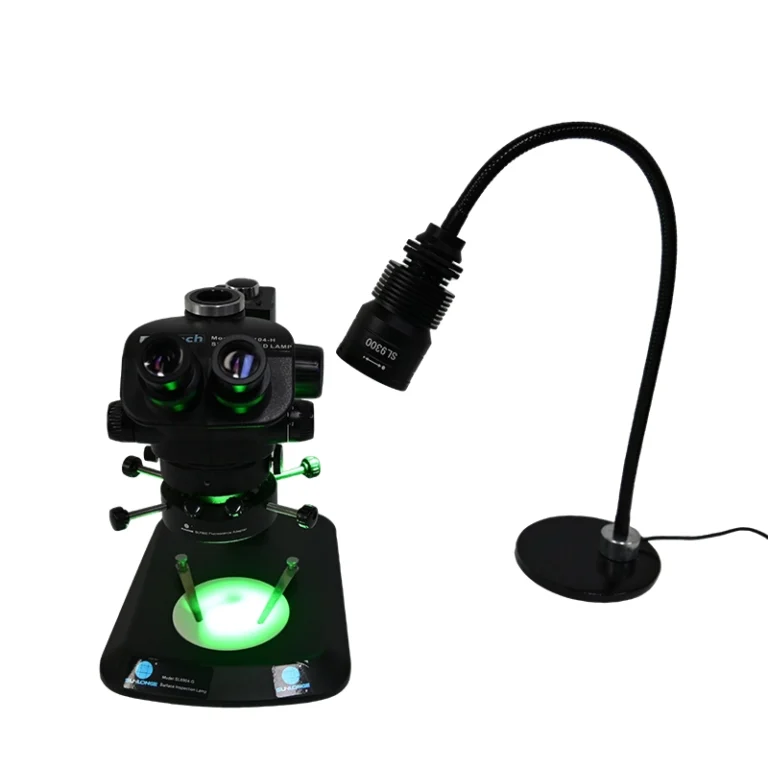

In addition, we can customize-design excitation light source for customer with different request. Now SLF9300 general excitation light source is SLF9300-B 455 blue light and SLF9300-G 525NM green light.
Parameter of SLF9300 Dual Wavelength Fluorescence LED Light Source
| Model | SLF9600-B | SLF8804-G | Remark |
|---|---|---|---|
| LED No and specification | 1pc 20W 6000K+1 pcs 455NM blue narrow band filter | 1pcs 20W 6000K+1 pcs 525NM green narrow band filter | We can customization according to customer demand. |
| Customization according to customer request | |||
| Illuminance（30cm） | 28600uw/cm2-365NM | 13500LX-455NM | |
| 13500LX-455NM | 40000LX-525NM | ||
| Beam area（MM） | ○180MM | ○220MM | |
| Switch | Rotate the lamp head and infinitely dimming. | ||
| Lifespan | 30000H | ||
| Power supply | Modulator（Input110-240V, Output: 12-24V,1A）Infinitely dimming | ||
| Size and weight | Size: 138 x10 mm(Round base)，Arm length:600mm，Lamp head：63*116MM; Weight：2.3KG(w/o AC modulator)180 * 190 * 106mm; | ||
Features of SLF9300 Dual Wavelength Fluorescence LED Light Source

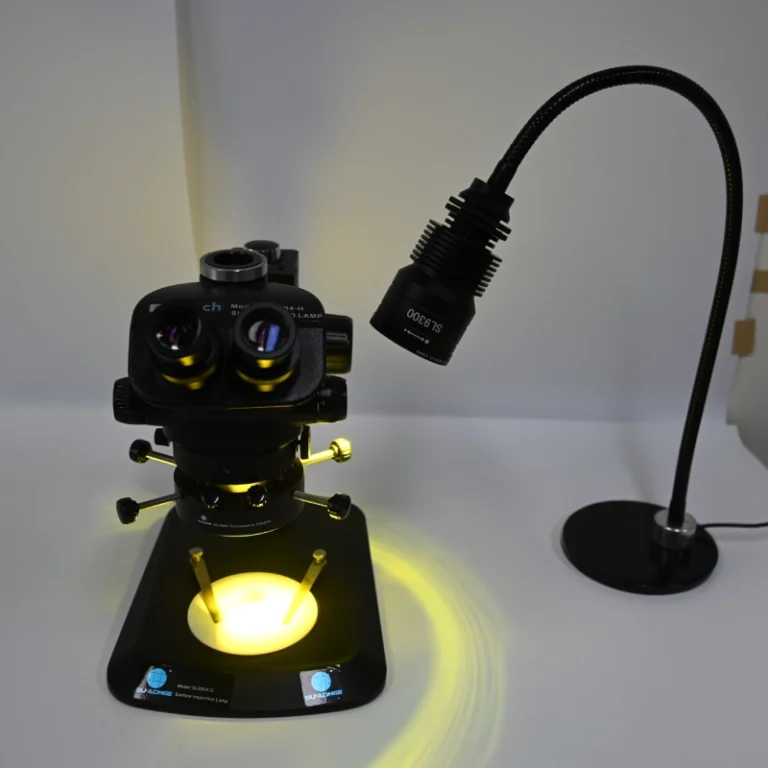

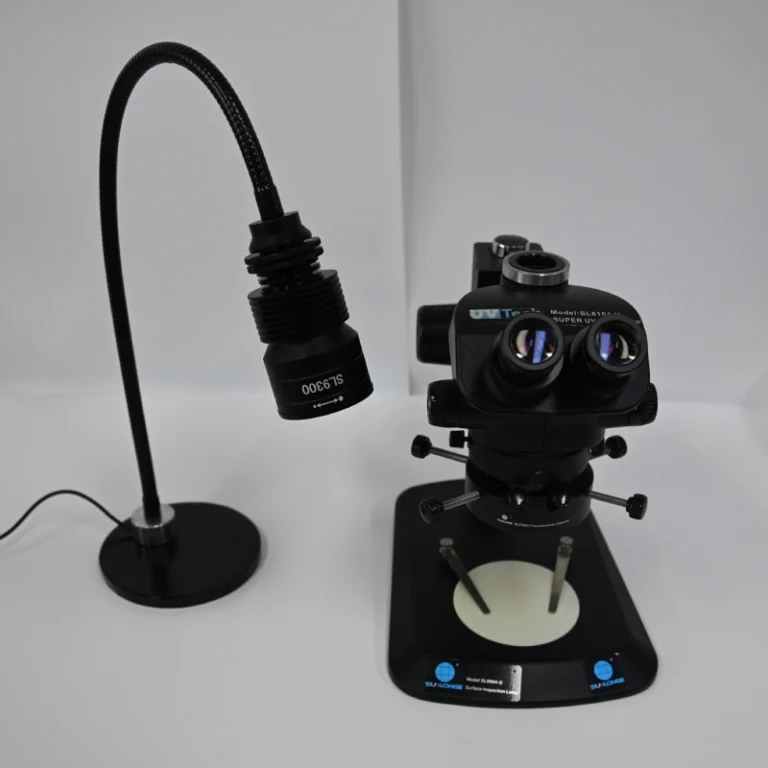

- The dual wavelength stereo microscope excitation light source SLF9300-X can offer a complete solution for the stereo microscopes. It includes everything need to adapt(not convert) any stereo microscope.
- The dual wavelength body microscope excitation light source SLF9300-X, with 2 wavelengths of excitation light source, can solve all the problems in the test, or you can choose one of the options; offer customers a better choice.

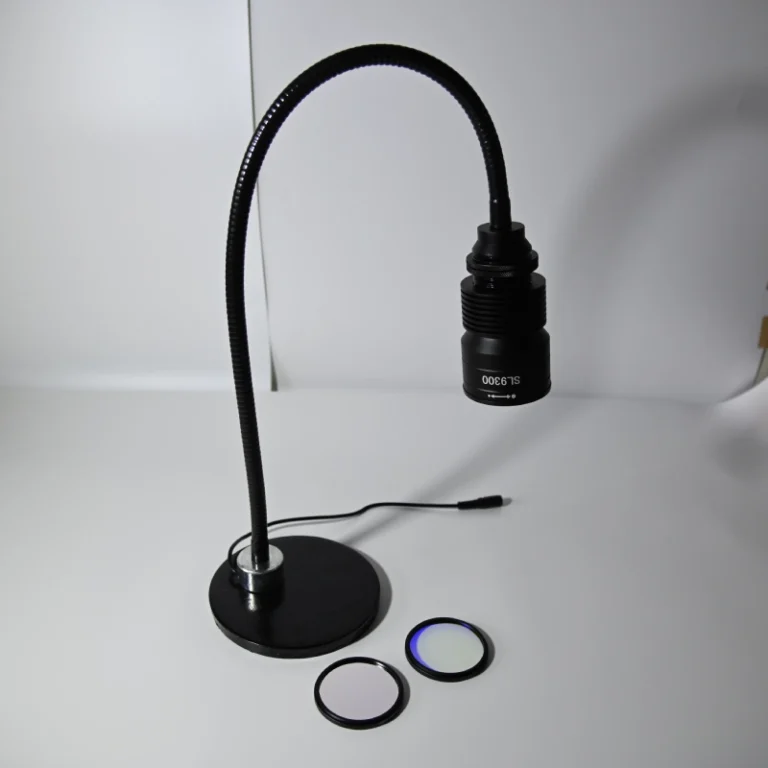

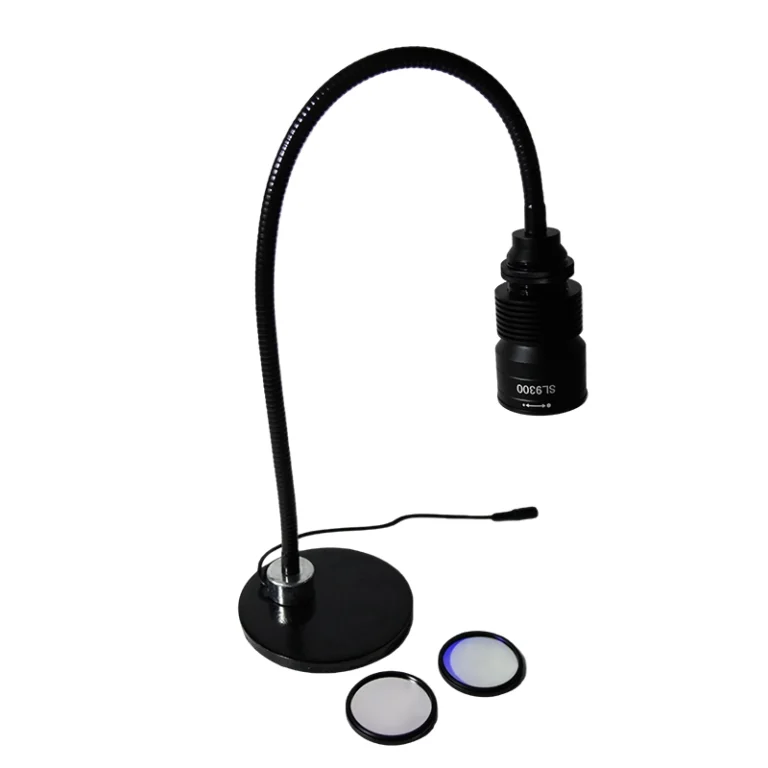

- Simple changing different narrow band filters and observation filters, you can have a different excitation light source, convenient and easy.

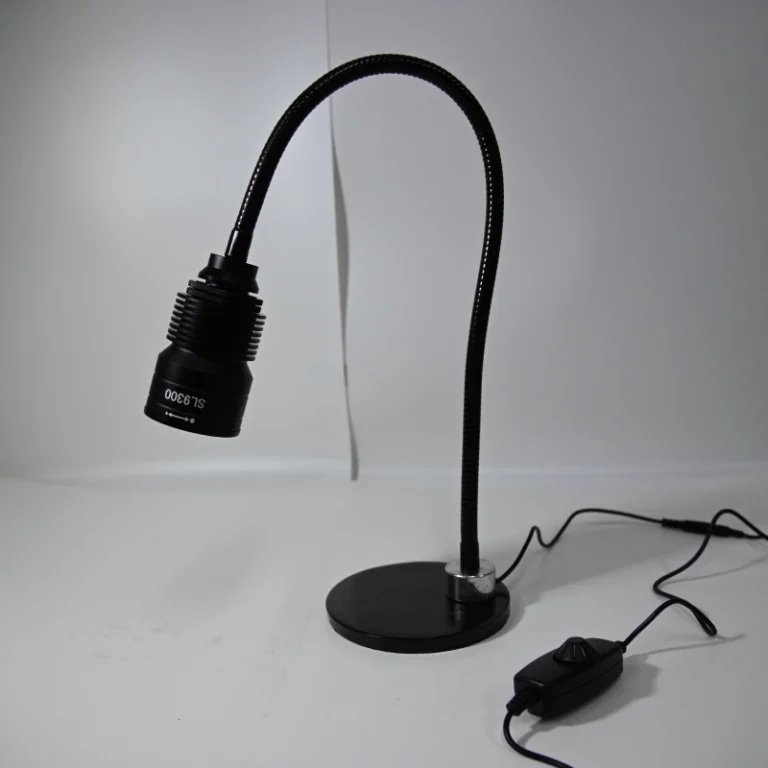

- Infinite dimming function, adjust the illuminance according to test demand.
Observables Fluoresces List At Various Wavelengths
UV:
Excitation wavelength 330nm~400nm emission wavelength: 425nm
Violet:
Excitation wavelength 395nm~415nm emission wavelength: 455nm
Blue:
Excitation wavelength: 420nm~485nm Emission wavelength: 515nm
Green:
Excitation wavelength: 460nm~550nm Emission wavelength: 590nm
Excitation light source code | Excitation wavelength | Emission wavelength | Observable fluorescence |
365NM-U | 365NM | 425NM | DAPI |
395NM-V | 395NM | 455NM | CFP,BFP |
455NM-B | 455NM | 510NM | GFP,fluorescein |
525-G | 525NM | 595NM | DsRed,TdTomato |
Slf9300 Series Abbreviation And Code
SLF-9300XX
365NM ultraviolet Abbreviation–U
395NM violet Abbreviation—V
455NM blue light Abbreviation–B
525NM green light Abbreviation–G
595NM amber light Abbreviation–A
625NM red light Abbreviation-R
